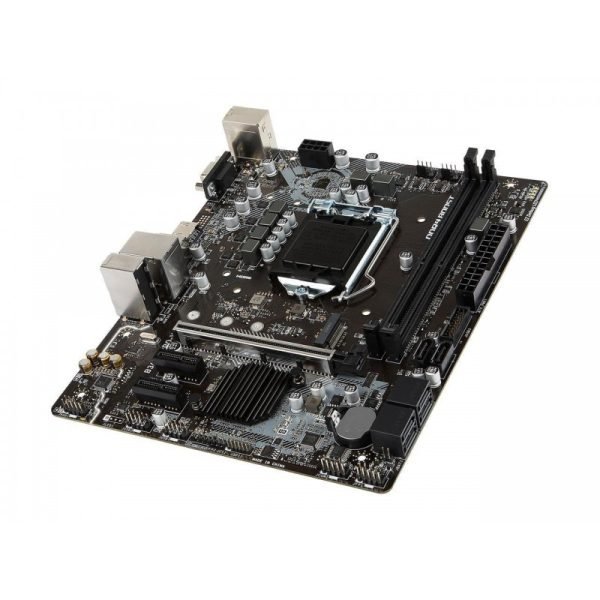

MSI B360M PRO-VH

Chipset Intel B360
CPU Socket LGA 1151
Back Panel I/O
USB 2 x USB 2.0 Type-A
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
Display 1 x VGA
1 x HDMI
Audio 3 x 3.5 mm
Ethernet / Controller 1 x Realtek RTL8111H Gigabit
PS/2 1 x Combo
Memory
Memory Slots 2 x 288-Pin
Memory Support DDR4 2133, 2400, 2666 MHz
Maximum Capacity 32 GB
Channel Architecture Dual Channel
ECC Support Non-ECC Unbuffered
Storage Expansion
SATA 6 x SATA III
M.2 1 x M Key 2242, 2260, 2280
U.2 None
Internal I/O
Expansion Slots 1 x PCIe 3.0 x16
2 x PCIe 3.0 x1
USB 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support None
Air Cooling 1 x 4-Pin CPU
1 x 4-Pin System
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin CPU
Security Chassis Intrusion
Audio None
Diagnostics Clear CMOS
Legacy 1 x Serial
Front Panel I/O
I/O Connection Headers USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec Realtek ALC887 (7.1-Channel)
Software
Supported Operating Systems Windows 10 (64-Bit)
Physical
Form Factor Micro-ATX
Dimensions 8.9 x 7.3″ / 226.06 x 185.42 mm
Packaging Info
Package Weight 1.6 lb
Box Dimensions (LxWxH) 10.3 x 10.1 x 2.3″
