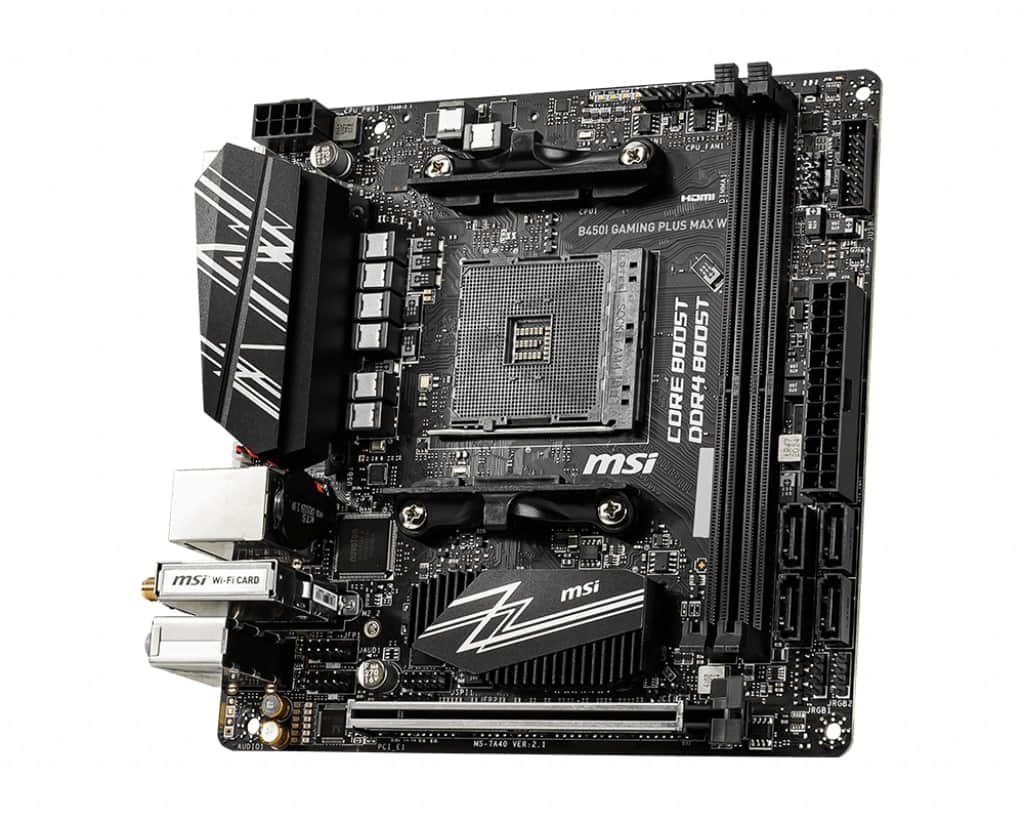

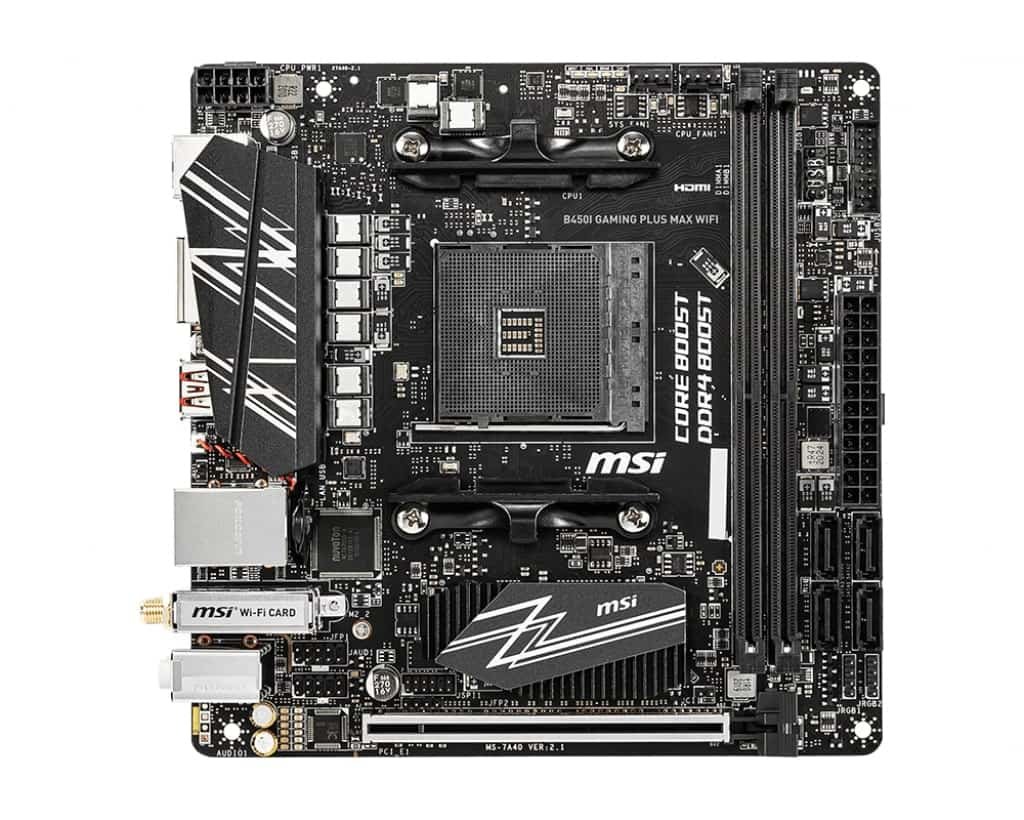

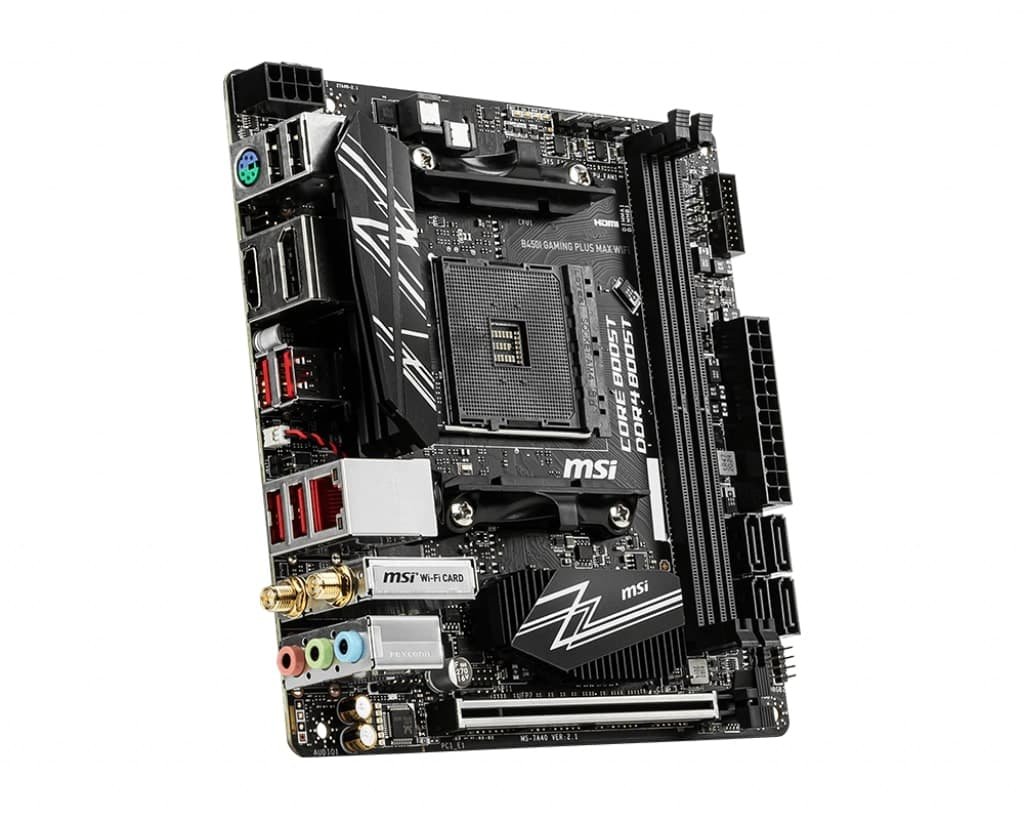

MSI B450I Gaming Plus Max WiFi Mini-ITX Motherboard
WARRANTY
3 Years Warranty
Brand
MSI
Product Type
Motherboards
CPU PLATFORM
AMD
CPU SOCKET
AM4
FORM FACTOR
MINI-ITX
CHIPSET
AMD B450
MAXIMUM MEMORY
64 GB
IDEAL FOR GAMING
YES
Model
Brand MSI
Model B450I GAMING PLUS MAX WIFI
Supported CPU
CPU Socket Type AM4
CPU Type Support AMD Ryzen 1st, 2nd and 3rd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors for Socket AM4
Chipsets
Chipset AMD B450
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard Supports 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE
Supports 2667/ 2400/ 2133/ 1866/ MHz by JEDEC
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCIe 3.0 x16 slot
Supports x16 speed with AMD Ryzen 1st, 2nd and 3rd Generation processors
Supports x8 speed with AMD Ryzen with Radeon Vega Graphics processors
Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 1 x M.2 slot [M2_1, Key M]
Supports PCIe 3.0 x4 and SATA 6Gb/s 2280 storage devices [AMD Ryzen 1st, 2nd and 3rd Generation / Ryzen with Radeon Vega Graphics]
Supports PCIe 3.0 x2 and SATA 6Gb/s 2280 storage devices [AMD Athlon with Radeon Vega Graphics]
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic:
1 x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz
1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @24Hz
Available for the processor with integrated graphics.
Onboard Audio
Audio Chipset Realtek ALC887/ALC897 Codec
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek 8111H
Max LAN Speed 10/100/1000Mbps
Wireless LAN Intel Dual Band Wireless-AC 3168 module
The Wireless module is pre-install in the M2_2 [Key E] slot.
Supports Wi-Fi 1×1 802.11ac, dual band [2.4GHz, 5GHz] up to 433 Mbps speed.
Bluetooth Supports Bluetooth 4.2, 4.1, BLE, 4.0, 3.0, 2.1, 2.1+EDR
Rear Panel Ports

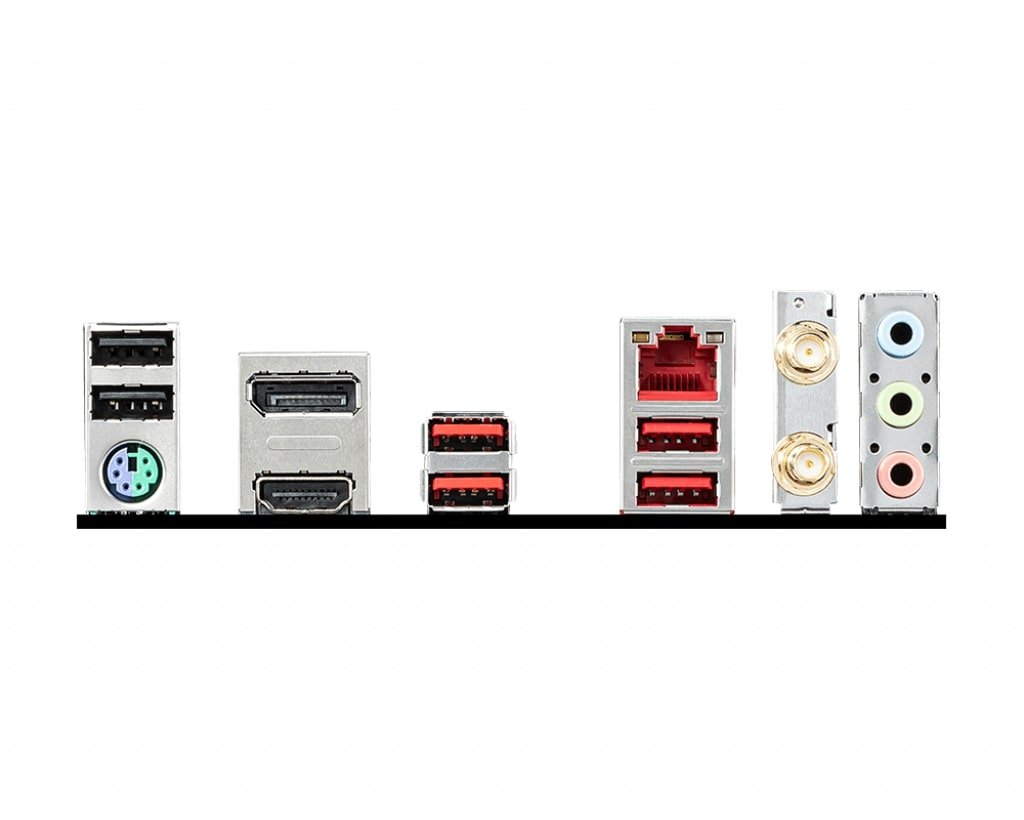

Back I/O Ports 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.2 Gen 1
Internal I/O Connectors
Onboard USB 1 x USB 2.0 connector [support additional 2 USB 2.0 ports]
1 x USB 3.2 Gen1 connectors [support additional 2 USB 3.2 Gen1 ports]
Other Connectors 1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
2 x 5050 RGB LED strip 12V connectors
Physical Spec
Form Factor Mini ITX
LED Lighting RGB
Dimensions (W x L) 6.7″ x 6.7″
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
Supports DDR4 Memory, up to 3466(OC) MHz
Lightning Fast Game experience: Turbo M.2
Core Boost: With premium layout and digital power design to support more cores and provide better performance
DDR4 Boost: Give your DDR4 memory a performance boost with A-XMP
Intel Wireless support: delivers AC speeds up to 433Mbps with lower CPU loading and better long-term usage.
In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
Audio Boost: Reward your ears with studio grade sound quality
