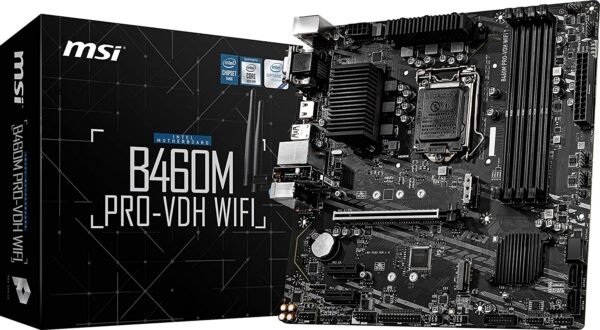

MSI B460M PRO-VDH Wi-Fi Gaming Motherboard

MSI B460M PRO-VDH WIFI Gaming Motherboard with Intel Socket 1200 10th Generation Core Series CPU, Max 128GB-DDR4-2933MHz-Memory
FEATURES :
Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 2933(Max) MHz

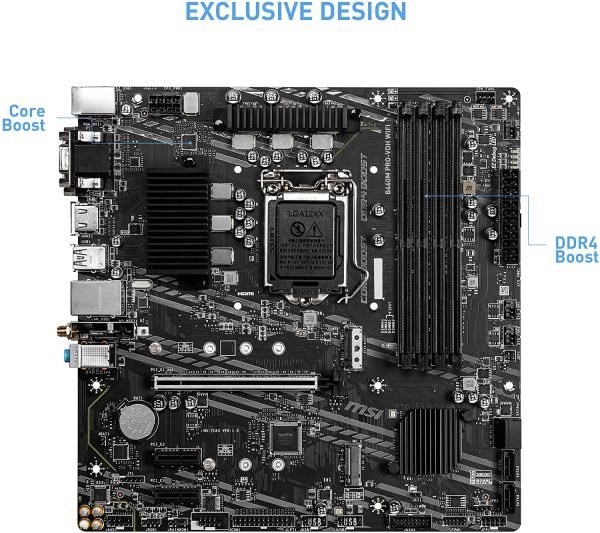

Core Boost: With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.

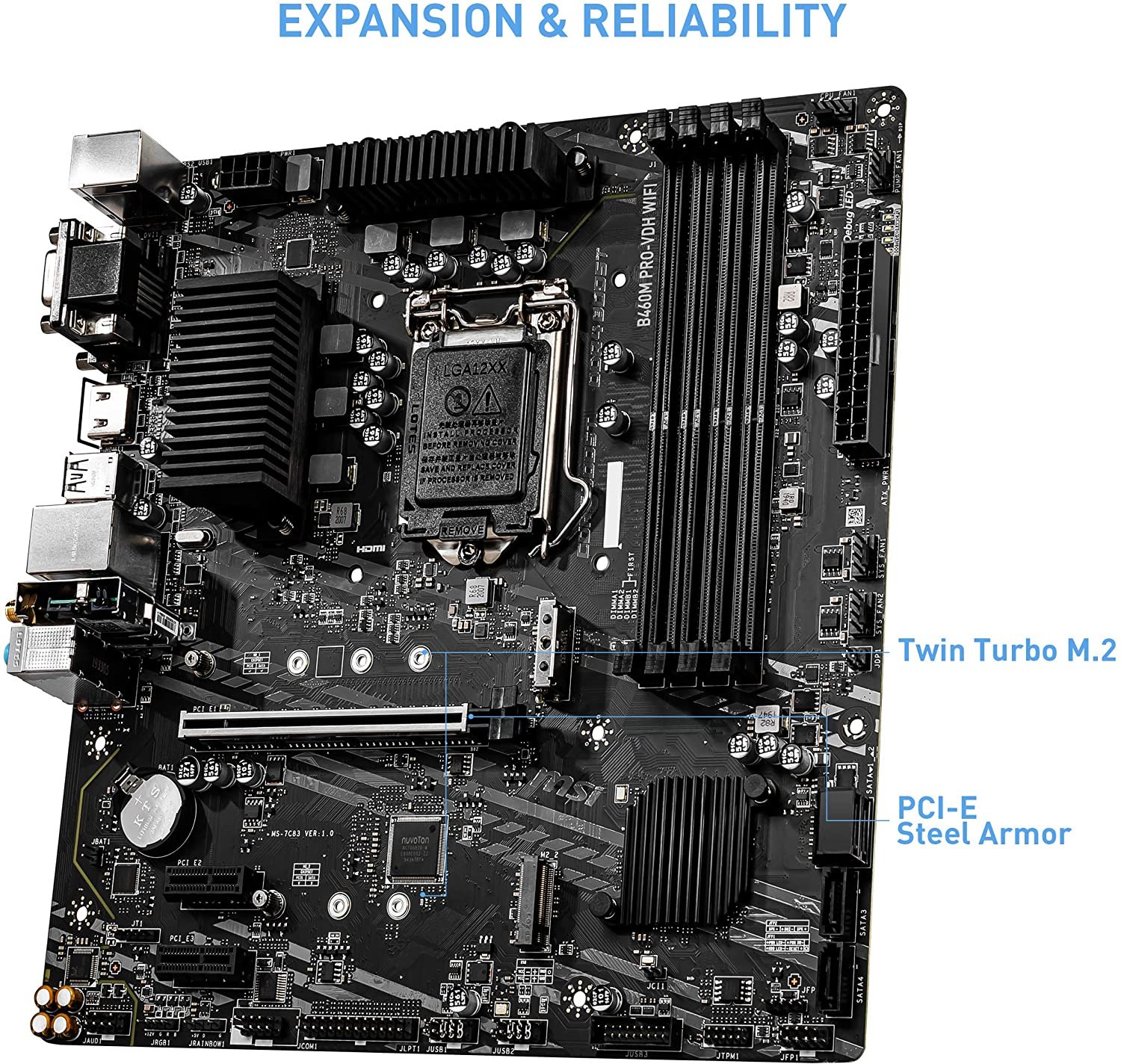

Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

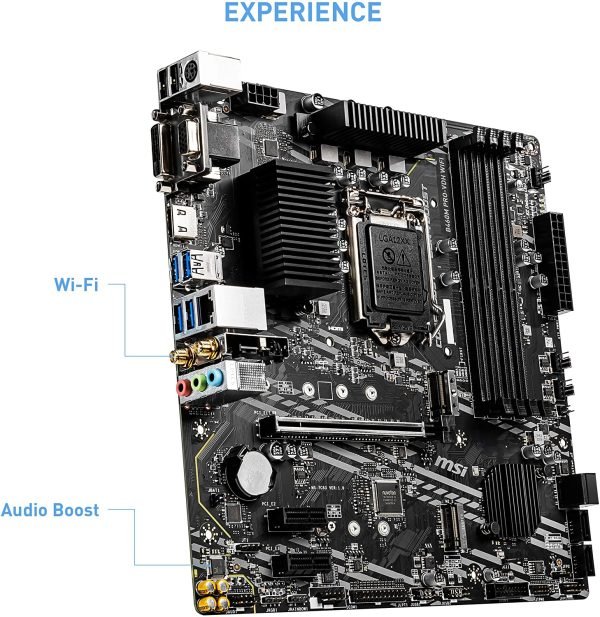

Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
TECHNICAL SPECIFICATIONS :
CPU
Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket

Memory

4x DDR4 memory slots supporting up 128GB
Intel Core i7/ i9
Support DDR4-2933 Memory (Max.)
Intel Core i5 (Below)
Supports DDR4-2666 Memory (Max.)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Expansion Slot

1x PCIe 3.0 x16 slot (from CPU)
2x PCIe x1 slots (from PCH)
Onboard Graphics

1x HDMI port, supporting a maximum resolution of 4096×2160 @ 30Hz, 2560×1600 @ 60Hz
1x DVI-D port, supports a maximum resolution of 1920×1200 @ 60Hz
1x VGA port, supports a maximum resolution of 2048×1536 @ 50Hz, 2048×1280 @ 60Hz, 1920×1200 @ 60Hz
Storage
Intel B460 Chipset

Recommended reading:MSI B450M Mortar Max m-ATX Gaming Motherboard

4x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Supports Intel Smart Response Technology for Intel Core processors
RAID
Intel B460 Chipset

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
Intel B460 Chipset

6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
Audio
Realtek ALC892 Codec

7.1-Channel High Definition Audio
LAN
1x Realtek RTL8111H Gigabit LAN Controller

Wireless LAN & Bluetooth
Intel 3168NGW

Recommended reading:MSI MPG B550 Gaming Carbon WiFi ATX Motherboard

The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports 802.11 a/ b/ g/ n/ ac
Supports Bluetooth 4.2
Internal connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water pump connector
2x 4-pin system fan connectors
1x front panel audio connector
2x system panel connectors
1x parallel port connector
1x serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
1x TPM module connector
Back panel ports

Keyboard / Mouse
VGA
LAN
USB 2.0
DVI-D
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 1 5Gbps Type-A
Wireless / Bluetooth
Audio Connectors
Form Factor

mATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
