MSI B560M PRO-VDH m-ATX Gaming Motherboard

MOTHERBOARD CHIPSET
Intel B560

MOTHERBOARD FORM FACTOR
MICRO ATX

MOTHERBOARD SOCKET
LGA 1200

Model MSI B560M PRO-VDH
CPU Support Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
CPU Socket 1200
Chipset Intel B560 Chipset
Form Factor Micro-ATX
Memory 4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Graphics 1x VGA port, supports a maximum resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Expansion Slots 1x PCIe x16 slots
-Support PCIe 4.0 for 11th Gen Intel CPU
-Support PCIe 3.0 for 10th Gen Intel CPU
2x PCIe 3.0 x1 slots (From B560 Chipset)
Storage 6x SATA 6Gb/s ports (From B560 chipset)
2x M.2 slot (Key M)
-M2_1 slot
-Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU)
-Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)
-Supports 2242/ 2260/ 2280/ 22110 storage devices
-M2_2 slot2 (from B560 chipset)
-Supports up to PCIe 3.0 x4
-Supports 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Supports Intel Smart Response Technology for Intel Core processors
LAN 1x Realtek 8125B 2.5Gbps LAN controller
Audio Realtek AL897 Codec
7.1-Channel High Definition Audio

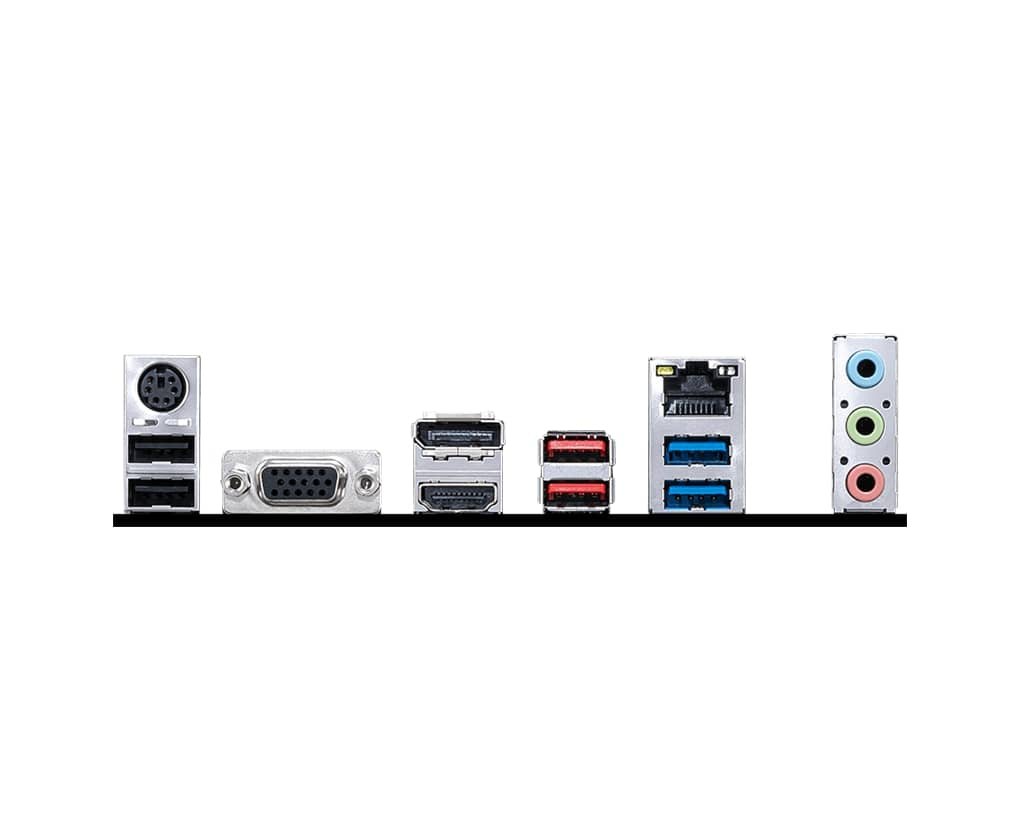

BackPanel Ports 1x HDMI
1x VGA
1x DisplayPort
1x Mouse / Keyboard
LAN port
Audio connector
2x USB 2.0
2x USB 3.2 Gen 2 10Gbps Type-A
2x USB 3.2 Gen 1 5Gbps Type-A
Internal I/O Connectors 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Serial port connector
1x Tuning Controller Connector
LED Features 1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
4x EZ Debug LED
Operating System Support for Windows 10 64-bit
Dimension 23.6 cm x 20.2 cm
Warranty 3 Years Brand Warranty
Package Contents MSI B560M PRO M-ATX Motherboard
M.2 Screws
I/O Shield
2x SATA Cables
Driver DVD
Registration Card
MSI Case Badge
Installation Guide
