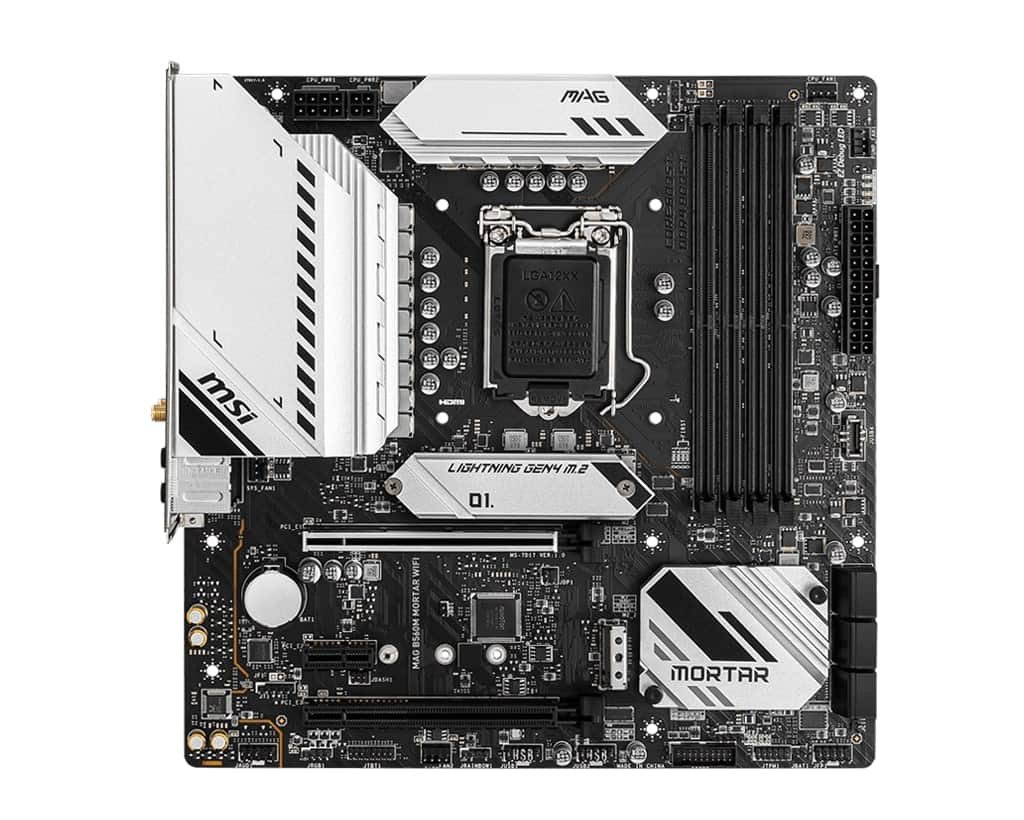

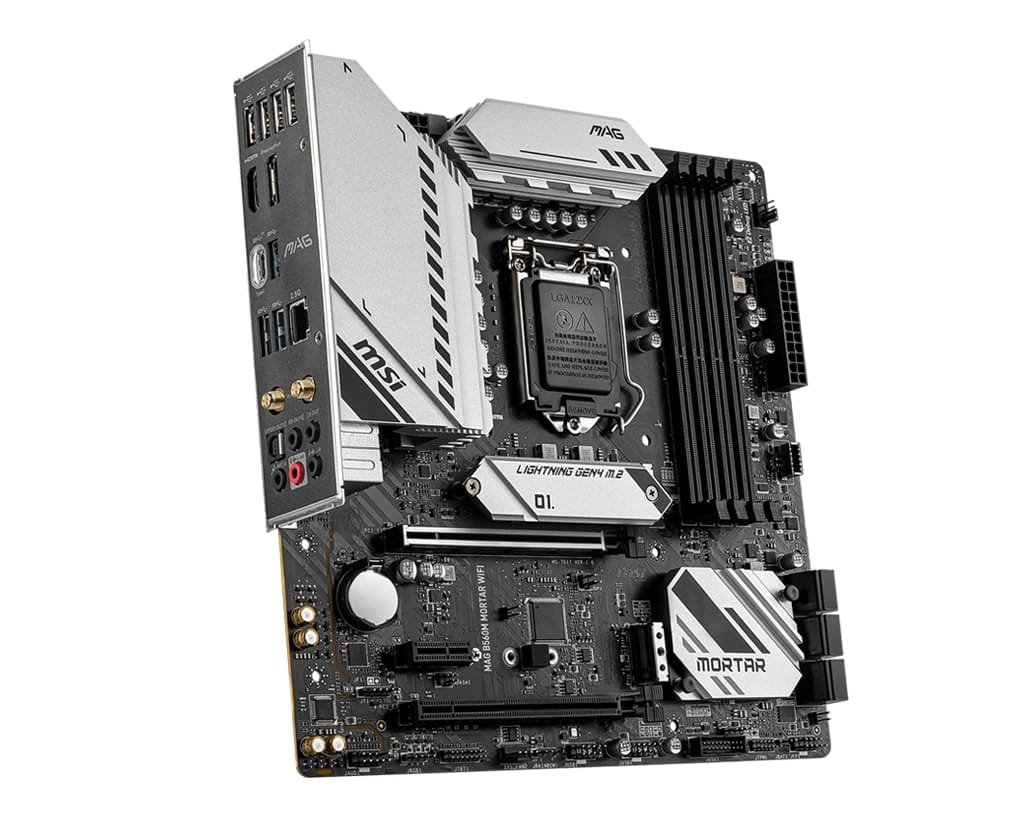

MSI MAG B560M Mortar WiFi m-ATX Gaming Motherboard

Brand MSI
Model MAG B560M MORTAR WIFI
Supported CPU
CPU Socket Type LGA 1200
CPU Type Supports 11th / 10th Gen Intel Core Processors
Supports Intel Pentium Gold / Celeron Processors

* Please go to intel.com for compatibility information.
Chipsets
Chipset Intel B560
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR)
Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR)

Max overclocking frequency:
1DPC 1R Max speed up to 5066+
1DPC 2R Max speed up to 4600+
2DPC 1R Max speed up to 4266+
2DPC 2R Max speed up to 4000+
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16*

* Actual support may vary by CPU.
PCI Express 3.0 x16 1 x PCI Express 3.0 x16

* PCI_E3 will be unavailable when installing M.2 SSD in M2_2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI_E3 and set x2 for M2_2 in BIOS.
PCI Express x1 1 x PCIe 3.0 x1
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
M.2 2 x M.2 slots (Key M):

Recommended reading:ASRock Z590 Phantom Gaming 4 Socket LGA 1200 ATX Motherboard

M2_1 slot:
Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)*
Supports 2242/2260/2280 storage devices

M2_2 slot (From B560 chipset):
Supports up to PCIe 3.0 x4
Supports 2242/2260/2280 storage devices
Intel Optane Memory Ready**

* SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
Intel Optane Ready Yes
Onboard Audio
Audio Chipset Realtek ALC897
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek RTL8125B
Max LAN Speed 10/100/1000/2500Mbps
Wireless LAN Intel WiFi 6E AX210
802.11 a/b/g/n/ac/ax
Bluetooth Bluetooth 5.2
Rear Panel Ports
Back I/O Ports 1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
1 x Optical S/PDIF Out
1 x USB 3.2 Gen 2×2 Type-C
3 x USB 3.2 Gen 1
4 x USB 2.0/1.1
5 x Audio Jacks
2 x Antenna Bracket
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 2 10Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors 1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x TPM module connector
1 x Tuning Controller Connector
1 x TBT connector (Supports RTD3)
1 x 4-pin RGB LED connector
2 x 3-pin RAINBOW LED connectors
4 x EZ Debug LED
Physical Spec
Form Factor Micro ATX
LED Lighting RGB
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
Windows Compatibility
Windows 11 Supported
Features
Features Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket

Supports DDR4 Memory, up to 5066(OC) MHz

Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs

Recommended reading:MSI B460M PRO-VDH Wi-Fi Gaming Motherboard

Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C

Audio Boost: Reward your ears with studio grade sound quality

Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire Technology
