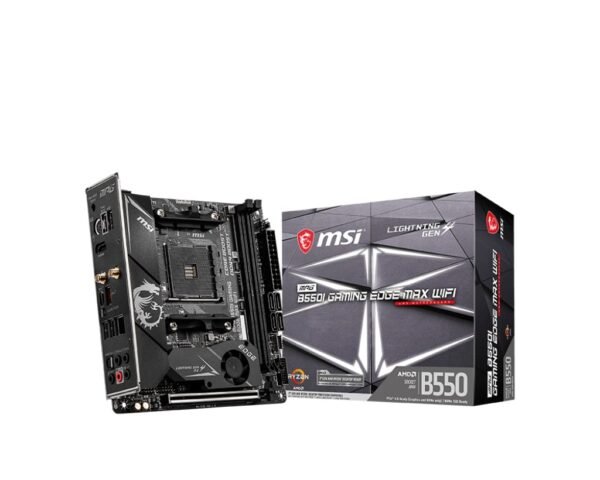

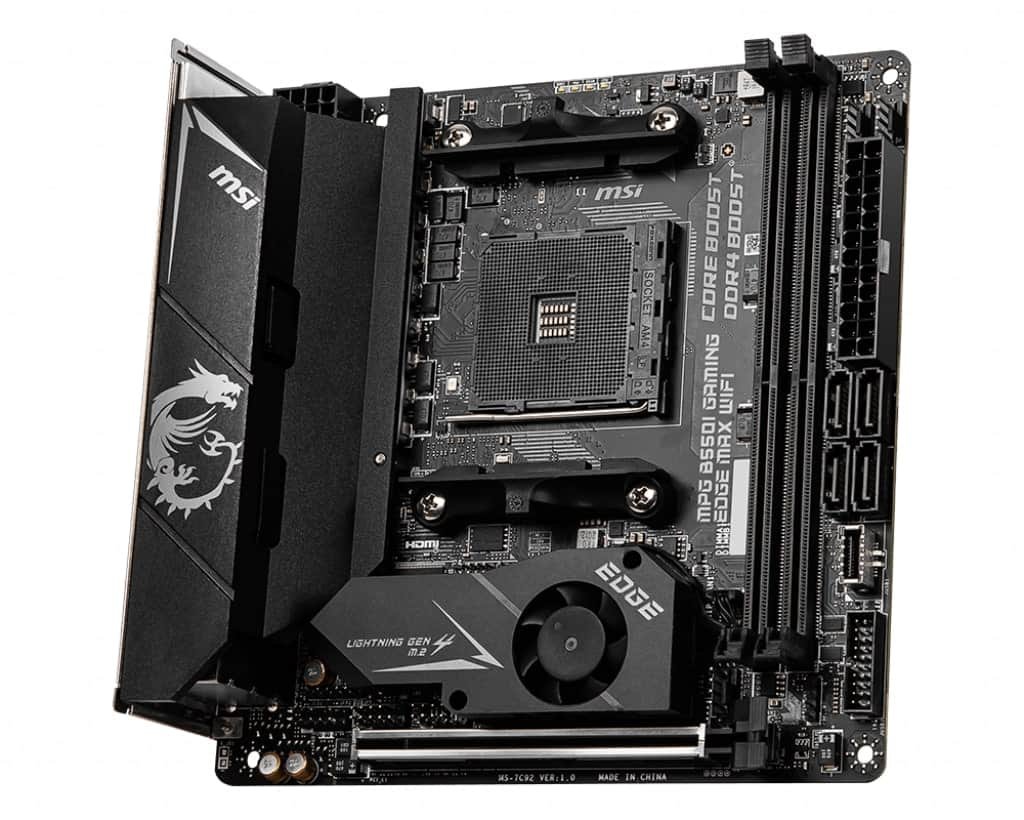

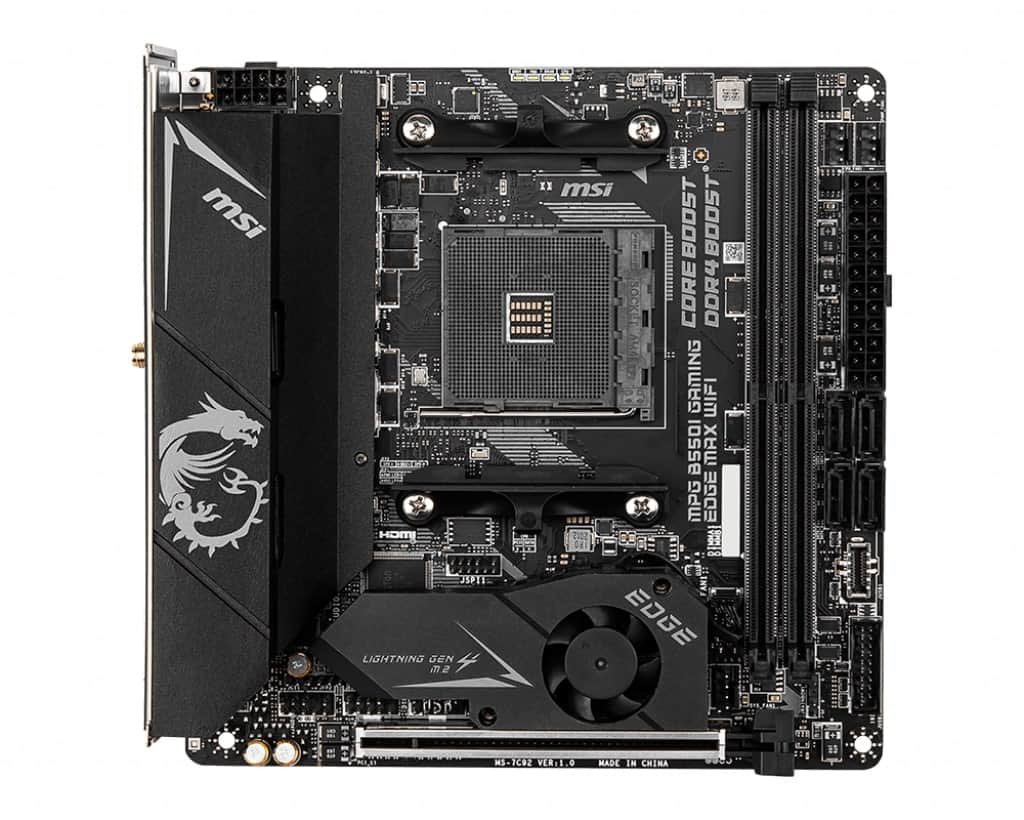

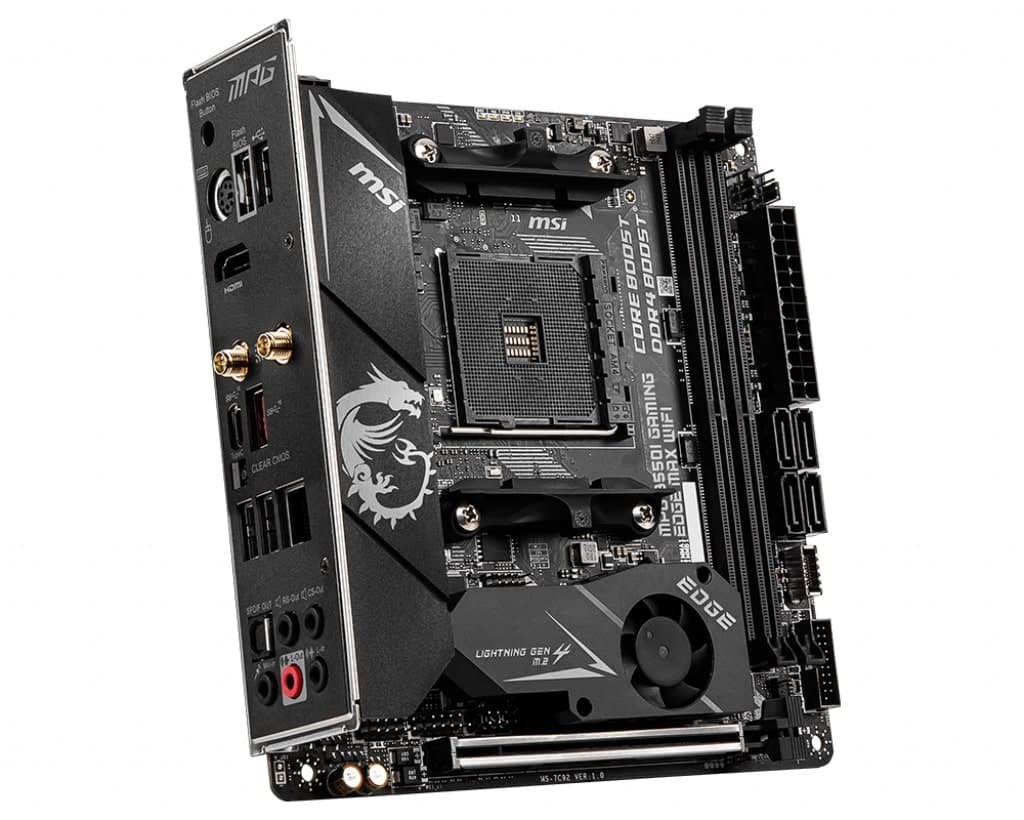

MSI MPG B550I Gaming Edge Max WiFi Mini-ITX Motherboard

The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.

PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.

LIGHTNING GEN 4 M.2
Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.

Recommended reading:MSI B450 Tomahawk Max ATX Gaming Motherboard

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

Technical Details

Brand : MSI
Model : MPG B550I GAMING EDGE MAX WIFI

CPU
Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

CHIPSET
AMD B550 Chipset

Recommended reading:MSI MEG X570 GODLIKE E-ATX Gaming Motherboard

MEMORY
2x DDR4 memory slots, support up to 64GB
Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4466/ 4533 / 4600+ MHz by A-XMP OC MODE
1DPC 1R max speed 4600 MHZ
1DPC 2R max speed 4000 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports un-buffered memory

EXPANSION SLOTS
1x PCIe 4.0 / 3.0 x16 slot

ONBOARD GRAPHICS
1x HDMI 2.0:/ 2.1 port, supports a maximum resolution of 4096×2160 @60Hz1
Maximum shared memory of 2048 MB

STORAGE
AMD B550 Chipset
4x SATA 6Gb/s ports
2x M.2 slots [Key M]
M2 1 slot [from AMD Processor]
Supports PCIe 4.0/3.0 x4 1
Supports SATA 6Gb/s
Supports 2260/ 2280 storage devices
M2_2 slot [from AMD B550 chipset]
Supports PCIe 3.0×4
Supports 2280 storage devices

RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devic

Recommended reading:ASRock Motherboard Motherboards Z370M PRO4

USB
AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports [1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector]
4x USB 2.0 ports [2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector]

AMD Processor
2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port] on the back panel
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO
Realtek® ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN
1x Realtek® RTL8125B 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH
Intel AX200
The Wireless module is pre-installed in the M.2 [Key-E] slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz [160MHz] up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.1

Recommended reading:ASRock B560M Pro4/ac Socket LGA 1200 Micro ATX Motherboard

INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots [M-Key]
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector [supports additional 2 USB 3.2 Gen 1 5Gbps ports]
1x USB 2.0 connector [supports additional 2 USB 2.0 ports]
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x 3-pin RAINBOW LED connector
1x Clear CMOS jumper
4x EZ Debug LED

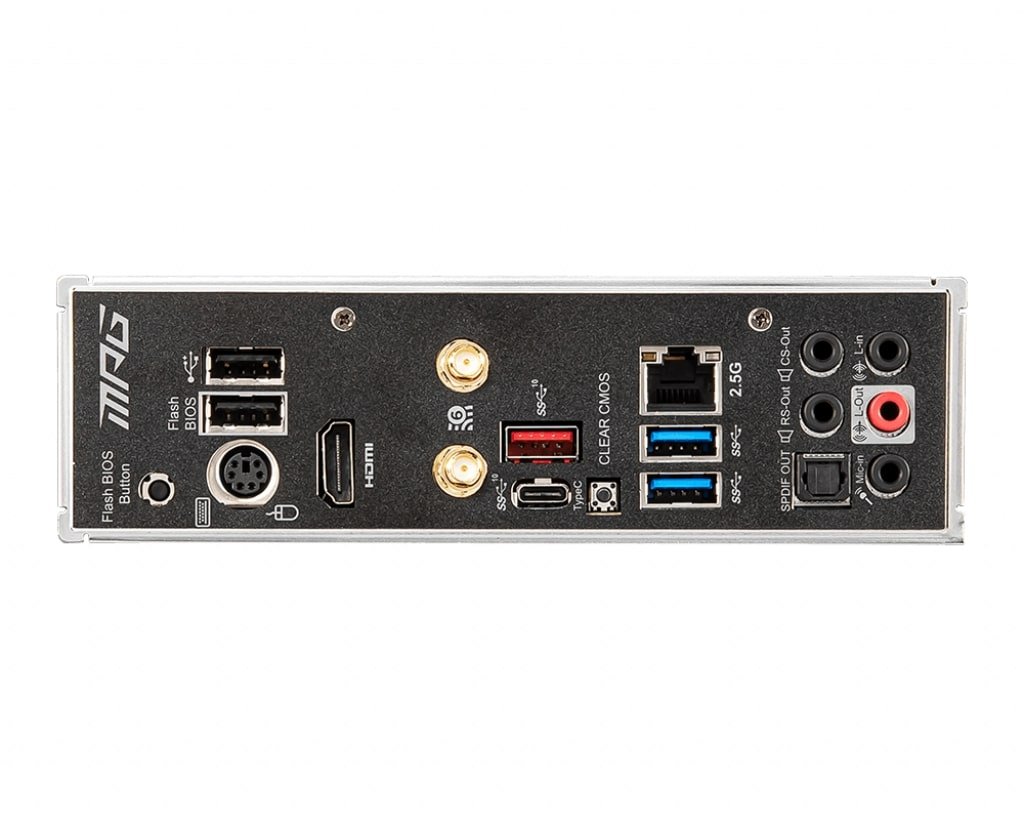

BACK PANEL PORTS
USB 2.0
WiFi / Bluetooth
USB 3.2 Gen 2 10Gbps(Type-A)
2.5G LAN
HD Audio Connectors
Flash BIOS Button
PS/2 Combo Port
HDMI 2.1
USB 3.2 Gen 2 10Gbps(Type-C)
Clear CMOS
USB 3.2 Gen 1 5Gbops(Type-A)
Optical S/PDIF OUT

I/O CONTROLLER
NUVOTON NCT6687-R Controller Chip

DIMENSIONS
Mini-ITX Form Factor
6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
