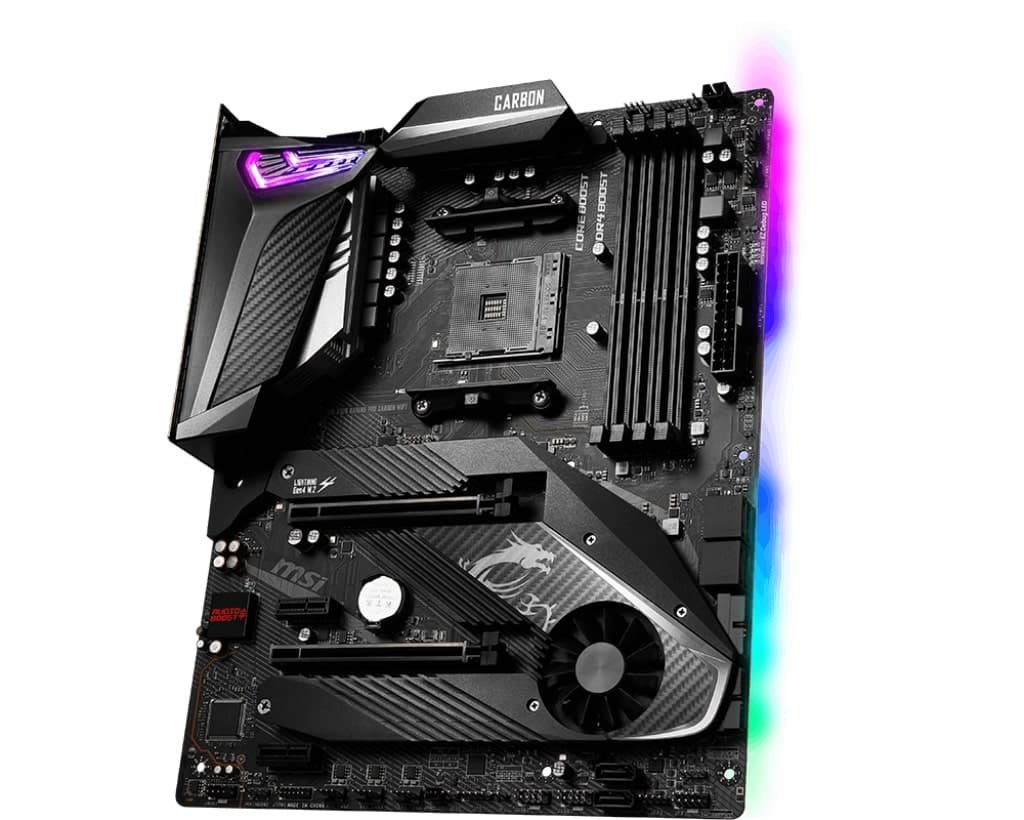

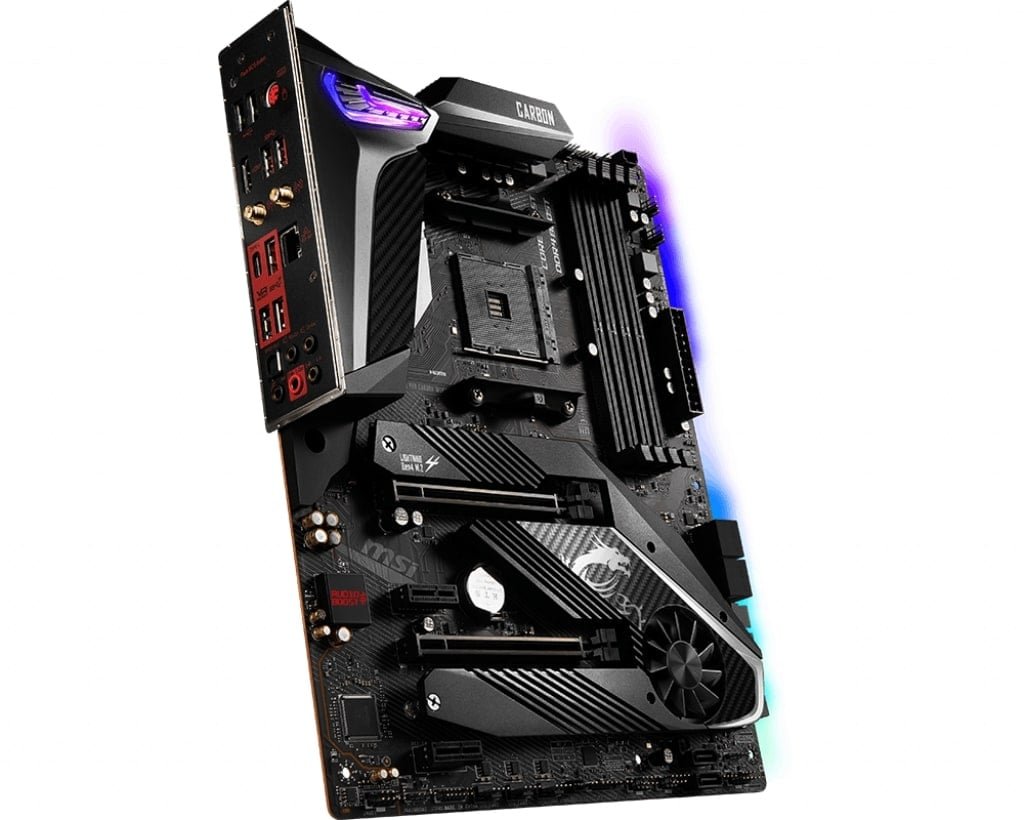

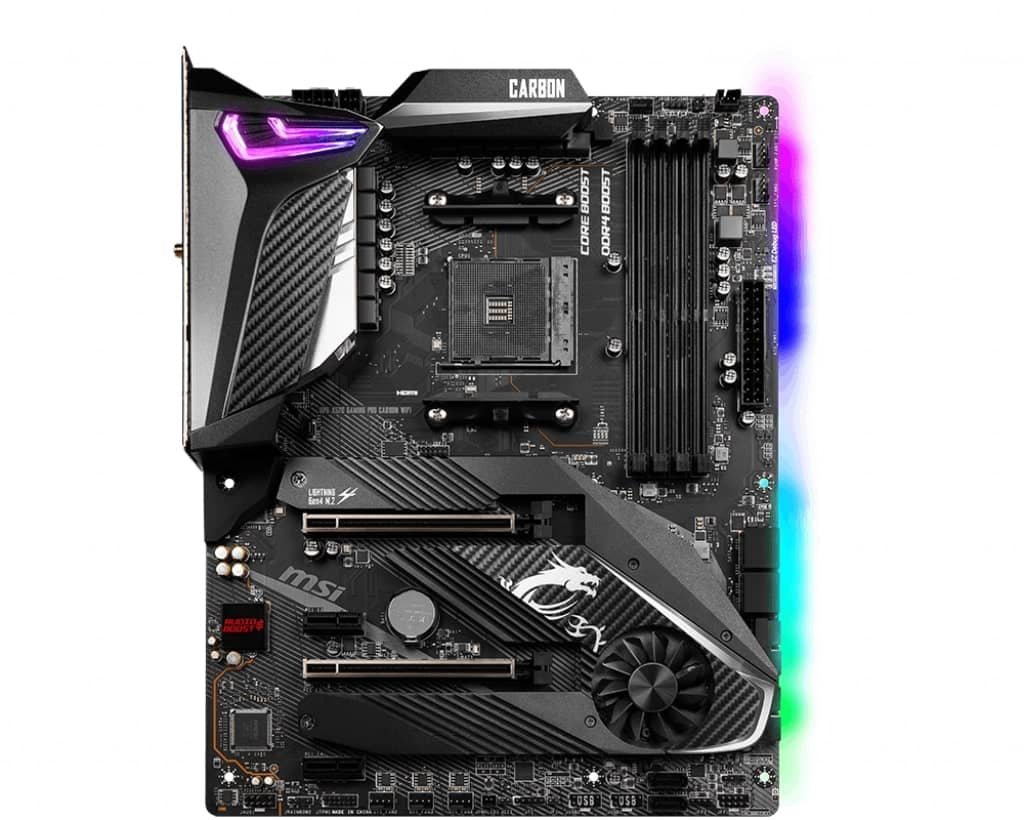

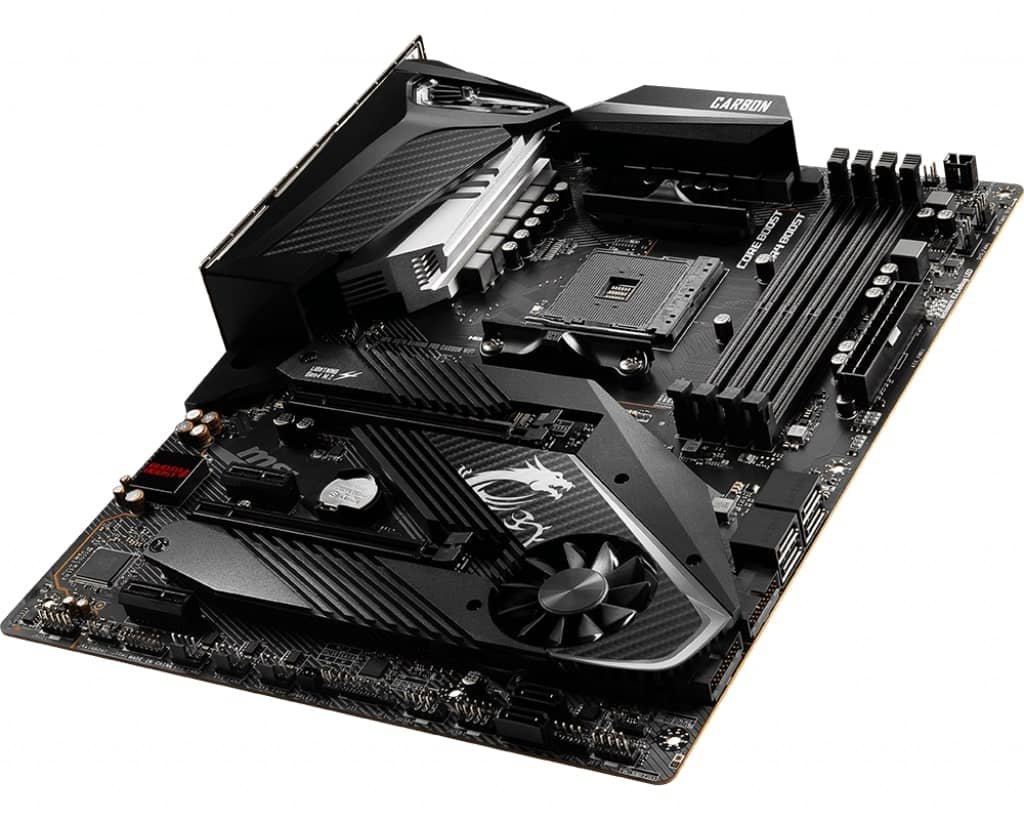

MSI MPG X570 Gaming Pro Carbon WiFi ATX Motherboard

Model
Brand MSI
Model MPG X570 GAMING PRO CARBON WIFI
Supported CPU
CPU Socket Type AM4
CPU Type Support for 3rd Gen AMD Ryzen Processors and future AMD Ryzen processors with BIOS update
Chipsets
Chipset AMD X570
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard 3rd Gen AMD Ryzen Processors support DDR4 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16 1 x PCIe 4.0/3.0 x16 slot (PCI_E1):
3rd Gen AMD Ryzen support PCIe 4.0 x16 mode
2nd Gen AMD Ryzen support PCIe 3.0 x16 mode
Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode

1 x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode
PCI Express x1 2 x PCIe 3.0 x1 slots
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
M.2 2 x M.2 slots (Key M)*:
M2_1 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/2260/2280 storage devices
M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/2260/2280/22110 storage devices

* The speeds may vary for different devices
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic:
1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @24Hz
Onboard Audio
Audio Chipset Realtek ALC1220
Audio Channels 7.1-Channel High Definition Audio
Supports Optical S/PDIF output
Onboard LAN
LAN Chipset Intel i211AT
Max LAN Speed 10/100/1000Mbps
Wireless LAN Intel Wi-Fi 6 AX200:
The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4 GHz – 5 GHz (160 MHz) up to 2.4 Gbps
Bluetooth Supports Bluetooth 5.1
Rear Panel Ports

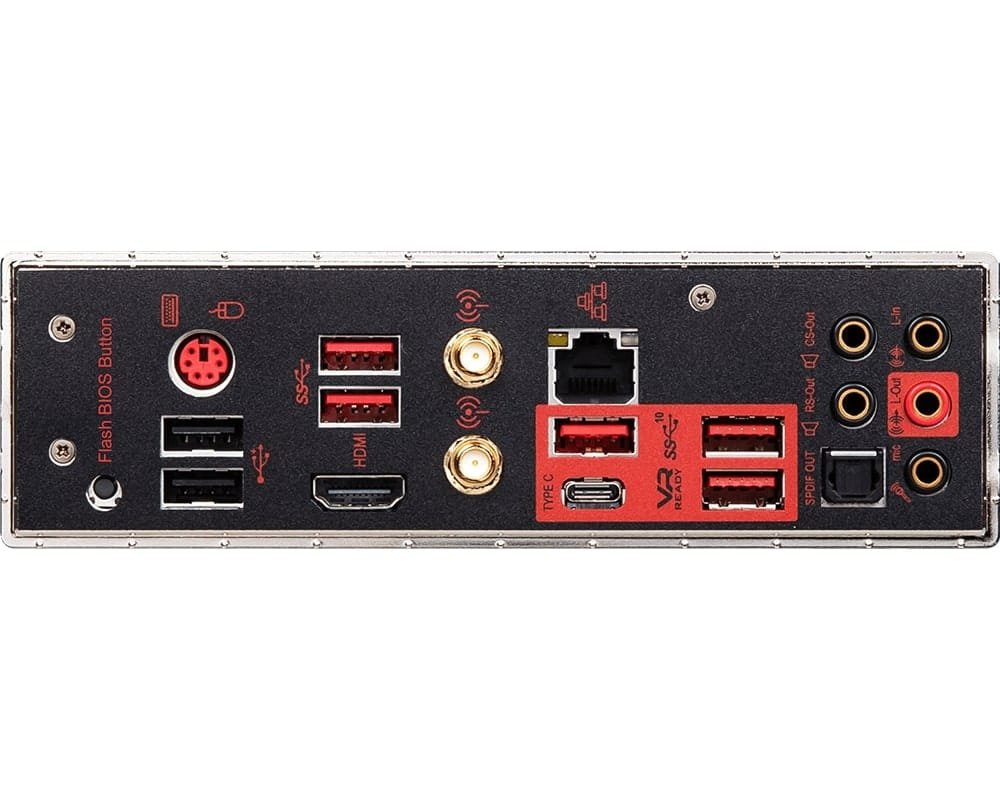

Back I/O Ports 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.2 Gen 2 Type-C / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 / 3 x USB 3.2 Gen 2 Type-A / 5 x Audio Jacks
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
Other Connectors 1 x 4-pin CPU fan connector
1 x 4-pin water-pump connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x TPM module connector
1 x Clear CMOS jumper
1 x Chassis Intrusion connector
1 x 4-pin RGB LED connector
2 x 3-pin RAINBOW LED connectors
1 x 3-pin CORSAIR connector
1 x 2-pin LED Demo Connect
4 x EZ Debug LEDs
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
Windows 11 Compatibility
Windows 11 Supported
Features
Features Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4

Supports DDR4 Memory, up to 4400+(OC) MHz

Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2

Recommended reading:Asus Prime B365M-C/CSM Motherboard

MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip

Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers

Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4-pin CPU power connector, Game Boost, DDR4 Boost

AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience

Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE, AMBIENT LINK with user friendly user interface
