MSI MPG X570S Carbon Max WiFi ATX Motherboard | AMD Ryzen Series CPU Support | AMD AM4 Socket | Max 128GB DDR4 Memory Support
AMD AM4 CPU Socket
AMD X570 Chipset
Max 128GB DDR4 Memory Support
ATX Form Factor
Mystic RGB LED Lighting
Motherboard Chipset – AMD X570 Chipset
CPU Socket – AMD AM4 Socket
Max Memory Support – 128GB DDR4
Max Memory Slots – 4
Motherboard Form Factor – ATX
OVERVIEW

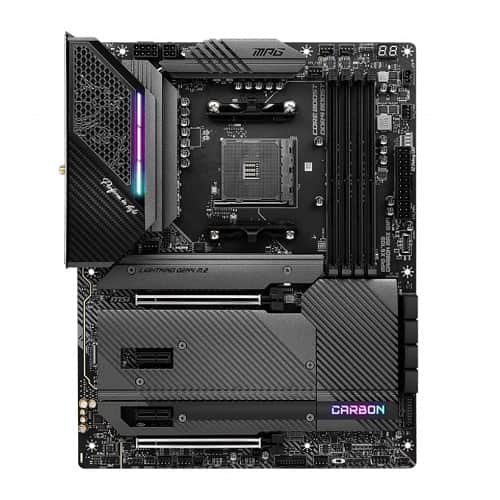

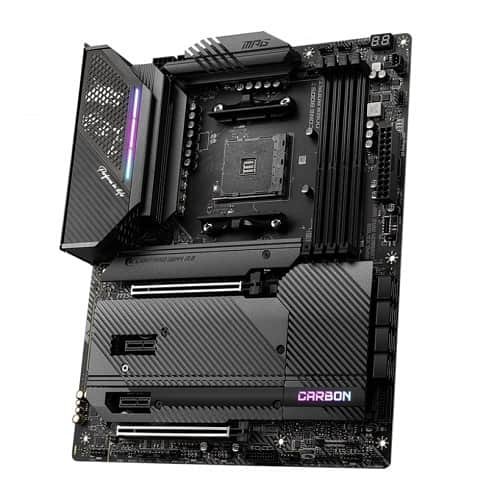

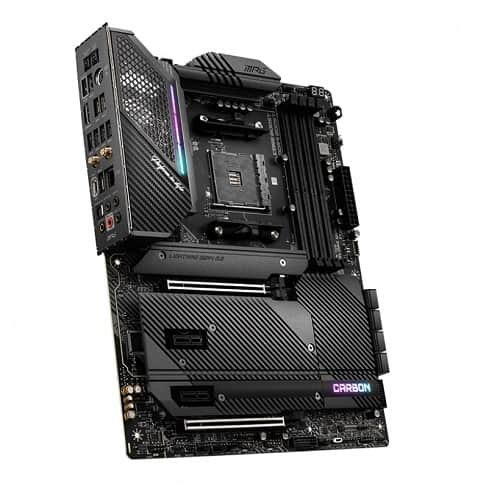

The MSI MPG X570S Carbon Max WiFi ATX motherboard is designed for use with AMD’s latest Ryzen series processors, built for ultra-fast performance. The board is made with premium class material, which provides lifetime durability. It has a large heat sink to help dissipate heat, as well as a customizable RGB lighting system. The board supports dual-channel DDR4 memory up to 5300MHz (OC). This MSI motherboard is the perfect solution for gamers who want to take their gaming to the next level.
The MSI MPG X570S Carbon Max WiFi Gaming Motherboard is complete with everything you need to make your next build a success. The best gaming audio solution (Audio Boost 5) has been integrated into this board, which can bring you the most immersive sound experience.
This MSI gaming motherboard includes a 2.5G LAN with LAN Manager and Intel WiFi 6E upgraded network solution which is used for professional and multimedia work by providing a secure, stable, and fast network connection.
TECHNICAL SPECIFICATIONS
CPU (MAX SUPPORT)_ Ryzen 9
SOCKET_ AM4
CHIPSET_ AMD X570 Chipset
DDR4 MEMORY_1866 (JEDEC) MHz / 2133 (JEDEC) / 5300 (OC)/ 5200 (OC) / 5000 (OC)/ 4800 (OC)/ 4600 (OC)/ 4533 (OC)/ 4300 (OC)/ 4400 (OC)/ 4266 (OC)/ 4200 (OC)/ 4133 (OC)/ 4000 (OC)/ 3866 (OC)/ 3600 (OC)/ 3733 (OC)/ 3466 (OC)/ 3400 (OC)/ 3300 (OC)/ 3333 (OC)/ 3000 (OC)/ 2933 (JEDEC)/ 3200 (OC)/ 2666 (JEDEC)/ 2400 (JEDEC)
MEMORY CHANNEL_ Dual
DIMM SLOTS_ 4
MAX MEMORY_ 128 GB
PCI-E X16_ 2
PCI-E X1_ 2
SATAIII_ 8
M.2 SLOT_ 4
RAID_ 0/1/10
LAN_ 1x Realtek 8125B 2.5G LAN
WIFI & BLUETOOTH_ Intel Wi-Fi 6E AX210 + Bluetooth v5.2
USB 3.2 PORTS (FRONT)_ 4 (Gen 1, Type A), 1 (Gen 2, Type C)

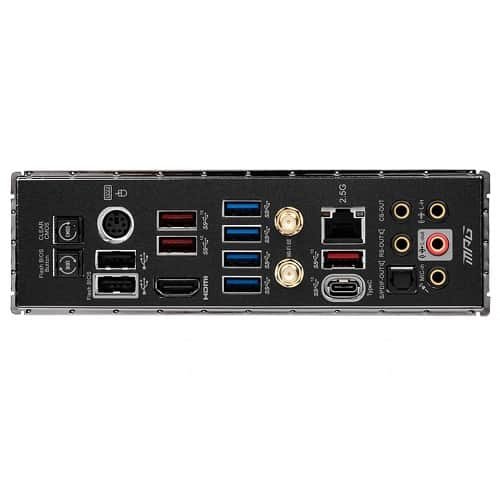

USB 3.2 PORTS (REAR)_ 3 (Gen 2, Type A), 1 (Gen 2, Type C), 4 (Gen 1, Type A)
USB 2.0 PORTS (FRONT)_ 4
USB 2.0 PORTS (REAR)_ 2
REAR AUDIO PORTS_ 5 + Optical S/PDIF (Realtek ALC4080 Codec)
HDMI_ 1
DIRECTX_ 12
FORM FACTOR_ ATX
CROSSFIRE_ Yes
OPERATING SYSTEM_ Support for Windows 10 64-bit
Specification: MSI MPG X570S Carbon Max WiFi ATX Motherboard | AMD Ryzen Series CPU Support | AMD AM4 Socket | Max 128GB DDR4 Memory Support
Product Type_
Motherboards
CPU PLATFORM_
AMD
CPU SOCKET_
AM4
FORM FACTOR_
ATX
EAN, GTIN, UPC_
4719072874988
Brand_
MSI
CHIPSET_
AMD X570
MAXIMUM MEMORY_
128 GB
IDEAL FOR GAMING_
YES
WARRANTY_
3 Years Warranty
