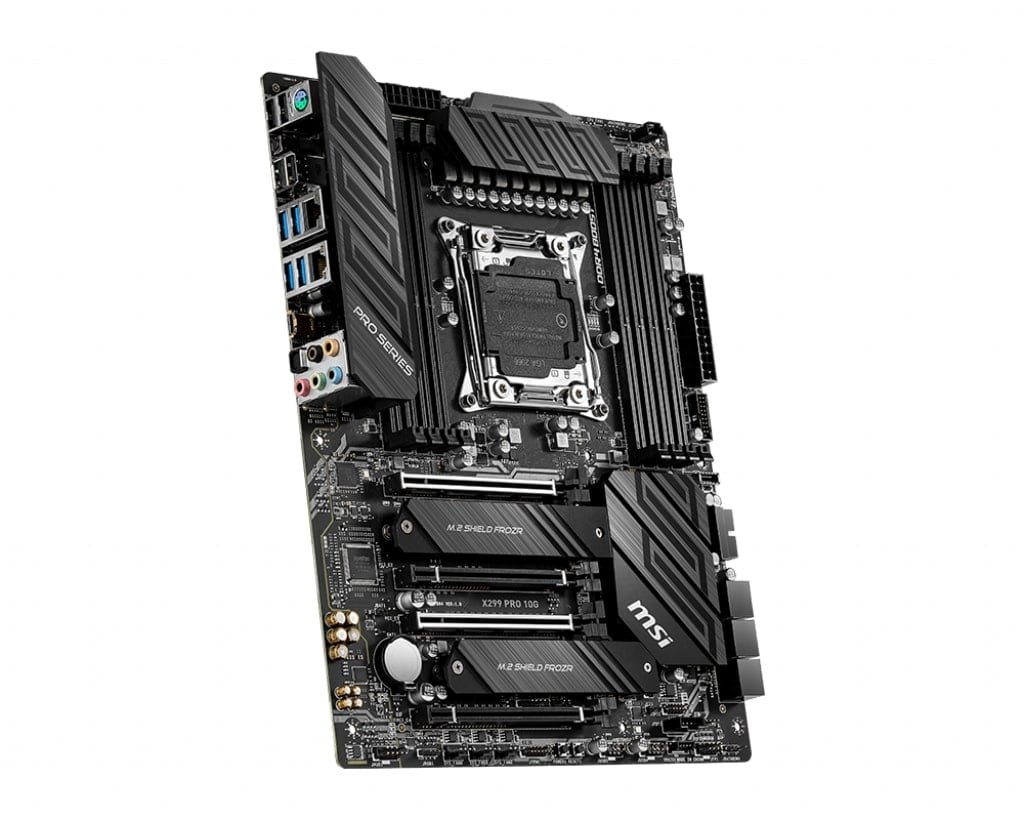

MSI X299 Pro 10G ATX Gaming Motherboard
Brand
MSI
FORM FACTOR
ATX
WARRANTY
3 Years Warranty
Product Type
Motherboards
CPU PLATFORM
INTEL
CPU SOCKET
LGA2066
MEMORY TYPE
DDR4
CHIPSET
Intel X299
MAXIMUM MEMORY
256 GB
IDEAL FOR GAMING
YES
Features
Inspired from architectural design with the extended heatsink for having better thermal solution; high speed USB 3.2 Gen2x2 solution, Core Boost, DDR4 Boost, 10G LAN card, Dual LAN onboard, Twin Turbo M.2 with M.2 Shield Frozr, M.2 Xpnader-Z
Supports Intel® Core™ X-series Processors 10000/9000/78xx(above)series for LGA2066 Socket
Supports DDR4 Memory, up to 4200+(OC) MHz
Lightning USB 20G: Powered by ASMedia ASM3242 USB 3.2 Gen2x2 controller, offers the fastest USB speeds with stability.
Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
M.2 XPANDER-Z: Offers two extra M.2 slots to increase your storage capacity at maximum speed.
Set Core Power Free: Core Boost, 2×8 pin CPU power connector, Core Boost, DDR4 Boost.
Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
Dual LAN onboard: Premium network solution included 1x 2.5G LAN for professional and multimedia use. Delivers a secure, stable and fast network connection.
10G Super LAN card: Next level network speed, secure networking with fastest data throughput to improve efficiency.
Audio Boost 4: Reward your ears with studio grade sound quality.
Multi-GPU: With Steel armor PCI-E slots. Supports 3-Way SLI / Crossfire™
Specifications
Processor Supports Intel® Core™ X-series 10000/ 9000/ 78xx (above) processors for socket LGA2066
Chipset Intel® X299 Chipset
Memory
8 x DDR4 memory slots, support up to 256GB
Supports DDR4 4200+(OC)/ 4000(OC)/ 3800 (OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933/ 2666/ 2400/ 2133 MHz
Quad channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
Supports non-ECC UDIMM memory
Supports un-buffered memory
Slots
4x PCIe 3.0 x16 slots
Support x16/x8/x16/x8 mode with the 48-lane CPU.
Support x16/x4/x16/x8 mode with the 44-lane CPU.
Support x16/x4/x8/x0 mode with the 28-lane CPU.
Please refer to user manual for PCIe 3.0 bandwidth table.
Multi-GPU
Supports 3-Way NVIDIA® SLI™ Technology
Supports 3-Way AMD® CrossFire™ Technology
Storage
Intel® X299 Chipset
6 x SATA 6Gb/s ports
2 x M.2 slot (Key M)
Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
Intel® Optane™ Memory Ready
The SATA1 connector will be unavailable when a SATA M.2 SSD has been installed in the M2_1 slot.
The M2_2 default setting is CPU lane. However, when a PCIe expansion card is installed in the PCI_E2 slot, the M2_2 will be automatically switched to PCH lane.
The SATA2 connector will be unavailable when M2_2 uses PCH lanes and a M.2 SATA SSD is installed in the M2_2 slot.
M2_2 supports Intel® Optane™ Memory by switching to PCH lanes.
RAID
Intel® X299 Chipset
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB
ASMedia® ASM3242 Chipset
1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel
ASMedia® ASM3142 Chipset
1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C internal connector
Intel® X299 Chipset
8 x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
Audio
Realtek® ALC1220 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN
1 x Intel I219-V Gigabit LAN controller
1 x Realtek RTL8125-CG 2.5G LAN controller
1 x Aquantia® AQC107 10-Gigabit LAN card
I219 LAN doesn’t support G3 to S5 Wake
Internal connectors
1 x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
1x USB 3.2 Gen2 Type-C port
1x 4-pin CPU fan connector
1x 4-pin Water Pump connector
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x TPM module connector
1x Chassis Intrusion connector
1x Virtual RAID on CPU connector
1x Thunderbolt Add-on Card Connector

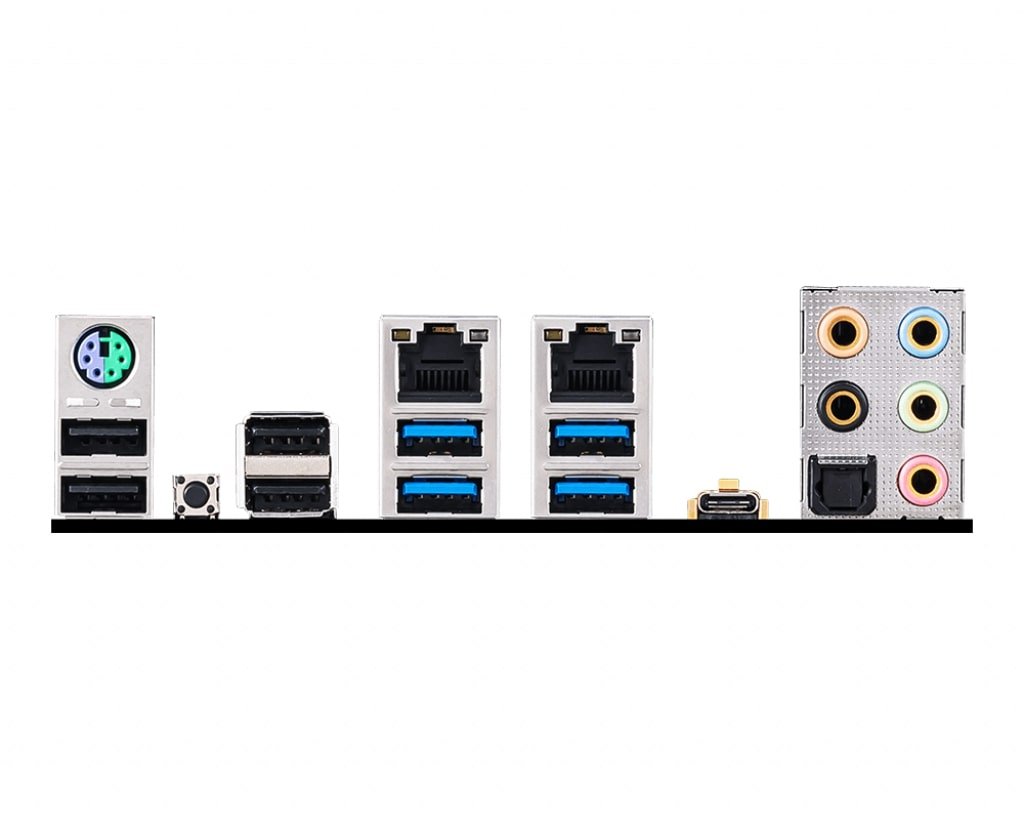

Back panel ports
Keyboard / Mouse
Gigabit LAN
2.5G LAN
Audio Connectors
USB 2.0
Clear CMOS Button
USB 2.0
USB 3.2 Gen1 Type-A
USB 3.2 Gen1 Type-A
USB 3.2 Gen2x2 20G Type-C
Optical S/PDIF out
Dimensions
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor
Mounting 9 mounting holes
Operating System Support for Windows® 10 64-bit
Warranty 3 Years
