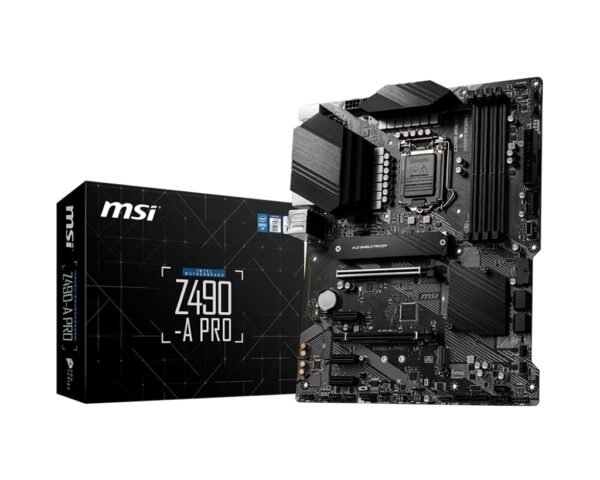

MSI Z490-A Pro ATX Gaming Motherboard
Brand
MSI
FORM FACTOR
ATX
EAN, GTIN, UPC
4719072722340
WARRANTY
3 Years Warranty
Product Type
Motherboards
CPU PLATFORM
INTEL
CPU SOCKET
LGA1200
CHIPSET
Intel Z490
MAXIMUM MEMORY
128 GB
IDEAL FOR GAMING
YES
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
FEATURES :
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE :
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.
M.2 SHIELD FROZR :
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE :
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
OPTIMIZED FOR WATER COOLING :
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
EZ DEBUG LED :
Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.
XL CLIP :
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
EASY TO ARRANGE YOUR CABLES :
Not clever at cable arrangement? MSI Atypical PCB design not only the identity of stylish but also makes SATA and USB cable routing easier. Arranges cable neatly even you are not familiar with system build.
MORE RELIABLE CIRCUIT TRANSMISSION :
6-layer PCB allows for higher bandwidth and faster transfer speeds. This is also beneficial for reliable circuit transmission.
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR :
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
ULTIMATE MOTHERBOARD PROTECTION :
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK :
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
OPTIMIZE NETWORK FOR LOWER LATENCY :
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.
FAST AND FUTURE-READY STORAGE :
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
OPTANE – BOOST YOUR HDD TO PERFORM LIKE AN SSD :
PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel Optane Memory device. Intel Optane technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance.
MAXIMIZE YOUR USB DEVICE PERFORMANCE :
Read and write your files over USB faster than ever. MSI PRO series motherboards offer a wide variety of options to connect and boost your USB devices, delivering 10Gbps transferring speed by both USB 3.2 Gen 2 Type-A and Type-C.
USB FRONT TYPE-C :
MSI motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
EXTEND YOUR RGB EXPERIENCE WITH EASE :
Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
12 + 1 +1 DUET RAIL POWER SYSTEM :
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 12 Duet Rail Power System(DRPS). Combining 8 + 4-pin power connectors and exclusive Core Boost technology, PRO series motherboard is ready to sustain heavy daily work.
LIGHTNING GEN 4 SUPPORT, READY 4 THE FUTURE :
MSI Z490 motherboards adopt tons of components, enhanced layout placement and PCB design dedicated for PCI-E Gen 4 solution, ensure the higher bandwidth and faster transfer speeds stability, ready 4 the future.
A HUGE STEP OF DDR PERFORMANCE :
MSI OC LAB does not merely work hard on extreme overclocking. Compare to Z390 motherboard memory XMP profile, MSI does have great improvement on performance and efficiency for Z490. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
CORE BOOST :
Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
DEDICATED HIGH DEFINITION AUDIO PROCESSOR :
Make sure you enjoy the purest sound quality in both stereo and surround sound.
HIGH QUALITY AUDIO CAPACITORS :
A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.
HD AUDIO CONNECTORS :
Keep you sound perfect by transmit your audio with pure digital signal.
ISOLATED AUDIO DESIGN :
Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.
SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS :
Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.
MSI CENTER :
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
RESIZABLE BAR (RE-SIZE BAR) :
Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.
TECHNICAL SPECIFICATIONS :
PROCESSOR
Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket
CHIPSET
Intel Z490 Chipset
MEMORY
4 x DDR4 memory slots, support up to 128GB
-Supports 1R 2133/2666/2933 MHz
-1DPC 1R Max speed up to 5000+ MHz
-1DPC 2R Max speed up to 4500+ MHz
-2DPC 1R Max speed up to 4400+ MHz
-2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
EXPANSION SLOT
1x PCIe 3.0 x16 slot (from CPU)
-Support up to PCIe 4.0 for 11th Gen Intel CPU
-Support up to PCIe 3.0 for 10th Gen Intel CPU
1x PCIe 3.0 x16 slot (from chipset, supports x4 mode)
3x PCIe x1 slots (from chipset)
ONBOARD GRAPHICS
1x HDMI port, supports a maximum resolution of 4096×2160 @ 30Hz
1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
MULTI-GPU
Supports 2-Way AMD CrossFire Technology
STORAGE
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
-M2_1 slot
CPU support mode (From 11th Gen Intel CPU only)- supports PCIe 4.0 x4/3.0 x4
Chipset support mode-supports PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260/ 2280/ 22110 storage devices
-M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
-Intel Optane Memory Ready
-Supports Intel Smart Response Technology for Intel Core processors
RAID
Intel Z490 Chipset
-Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
-Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB
Intel Z490 Chipset
-2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel)
-7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector)
-6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AUDIO
Realtek ALC892/ALC897 Codec
-7.1-Channel High Definition Audio
LAN
1x Realtek RTL8125B-CG 2.5G LAN Controller
INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water pump connector
6x 4-pin system fan connectors
1x front panel audio connector
2x system panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x serial port connector
1x TPM module connector
1x TBT connector 1

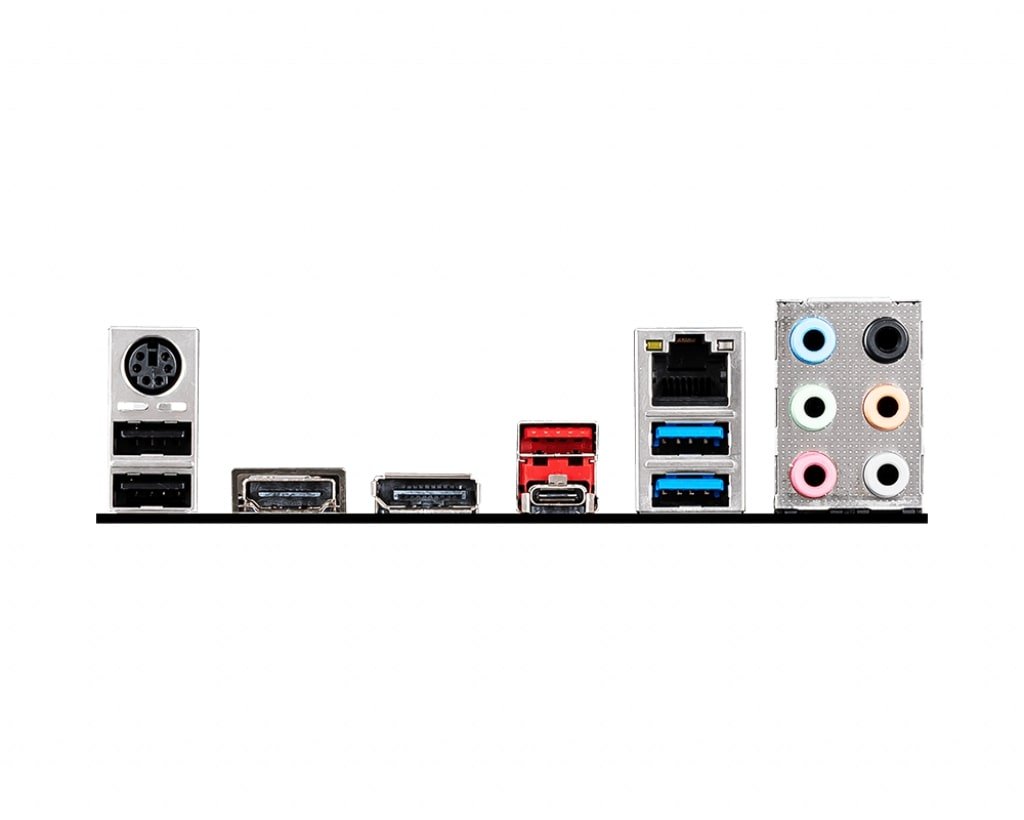

BACK PANEL PORTS
Keyboard / Mouse
2.5G LAN
Audio Connectors
USB 2.0
HDMI
DisplayPort
USB 3.2 Gen 2 10Gbps Type-A + Type-C
USB 3.2 Gen 1 5Gbps Type-A
DIMENSIONS
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
MOUNTING
9 mounting holes
OPERATING SYSTEM
Support for Windows 10 64-bit
