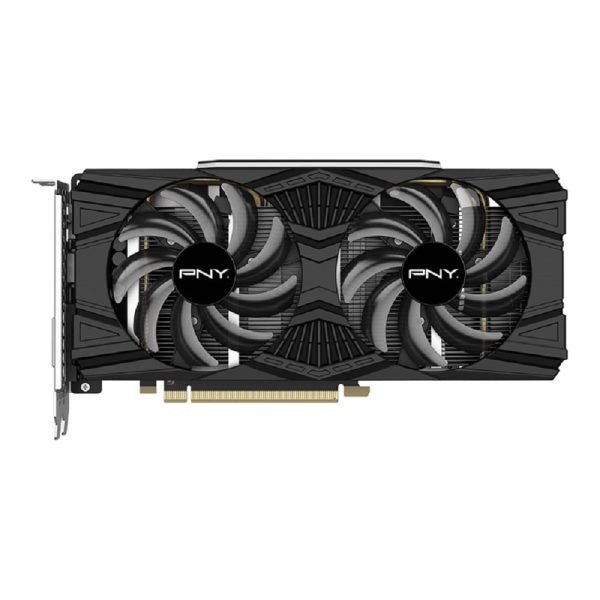

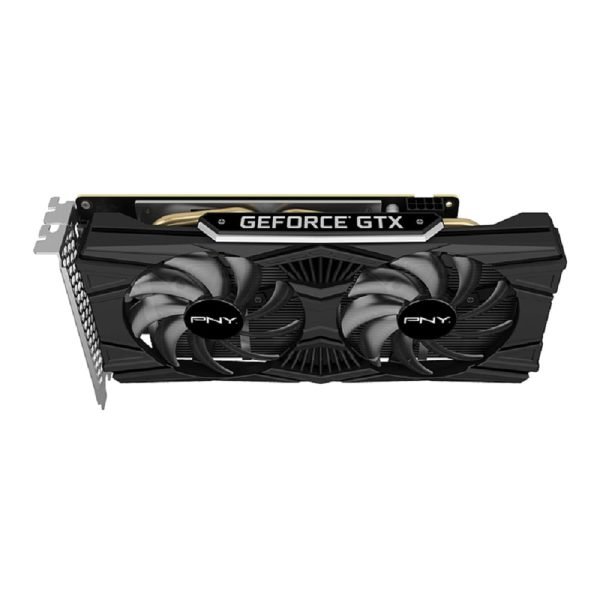

PNY GeForce GTX 1660 SUPER 6GB GDDR6 Dual Fan Graphics Card
6GB GDDR6 GPU Memory
192-bit Bus Memory
1530 MHz Clock Speed
PCI-Express 3.0 ×16 Interface
336 Gbps Memory Bandwidth
GPU Interface – PCI-Express 3.0 ×16
Memory – 6GB GDDR6
CUDA Cores – 1408
Memory Bandwidth – 336 Gbps
Memory Bus – 192-bit
OVERVIEW
The PNY GeForce GTX 1660 SUPER 6GB Dual Fan is the latest graphics card in the GeForce GTX 16 series. The GeForce GTX 1660 SUPER is a step up from the GTX 1650 and is designed for gamers who want to experience the next level of gaming without spending a fortune. The GeForce GTX 1660 SUPER is equipped with 6GB of GDDR6 VRAM, a boost clock of 1785 MHz, and features the new Turing architecture.
The Turing architecture is designed to deliver faster, more power-efficient performance than previous-generation cards. The GeForce GTX 1660 SUPER also features an improved thermal design, which is made possible by the new vapor chamber cooling system. The vapor chamber design improves cooling performance by increasing heat transfer from the hot GPU to the cooler and cooler ambient air.
FEATURES:
Best in Class Performance – Top-tier execution with the high-level design capacities of the award-winning NVIDIA Turing architecture.
Turing Shaders – Concurrent execution of floating point and integer operations, adaptive shading technology, and a new integrated memory architecture drive great performance in today’s games.
State-Of-The-Art-Graphics – State-of-the-art graphics features include variable-rate shading, mesh shading, and multi-scene rendering.
NVIDIA GeForce Experience – NVIDIA GeForce Experience lets you do it all, making it a must-have companion for your GeForce graphics card or laptop.
TECHNICAL SPECIFICATIONS
Part Number_ VCG16606SDFPPB
GPU Video Memory_ 6GB GDDR6
NVIDIA CUDA Cores_ 1408
GPU Memory Bus_ 192-bit
GPU Memory Bandwidth_ 336 Gbps
Form Factor_ Dual Slot
GPU Interface_ PCI-Express 3.0 ×16
TDP_ 125 W
Clock Speed_ 1530 MHz
Boost Speed_ 1785 MHz
Memory Speed_ 14 Gbps
NVLink_ Not Supported

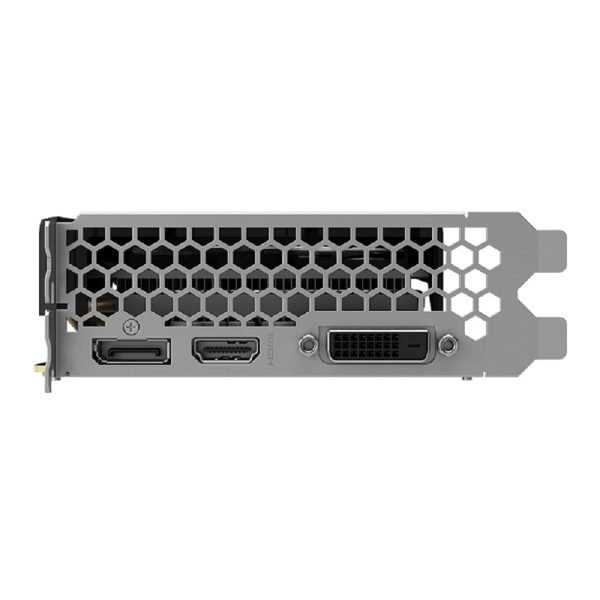

Outputs_ DisplayPort 1.4, HDMI 2.0b, DVI-D, HDCP 2.2
Multi-Screen_ Yes
Max Digital Resolution_ 7680 × 4320 @60Hz (Digital)
Power Input_ One 8-Pin
DirectX_ Microsoft DirectX 12 API
OpenGL_ OpenGL 4.6
Minimum System Requirements_ -PCI Express-compliant motherboard with one dual-width x16 graphics slot
-One 8-pin supplementary power connectors
-450 W or greater system power supply
-1.5GB available hard-disk space
-8GB system memory (16GB or higher recommended)
-Microsoft Windows 10 (April 2018 update or later), Windows 7 64-bit, Linux 64-bit
-Internet connection
Special Features_ Based on Turing Architecture, NVIDIA GeForce Experience, NVIDIA Ansel, NVIDIA Highlights, NVIDIA G-SYNC Compatible, Game Ready Drivers, Vulkan API, NVIDIA GPU Boost, VR Ready
Card Dimensions_ 1.38 x 9.25 x 4.41 (inch)
Box Dimensions_ 12.39 x 2.26 x 7.13 (inch)
Specification: PNY GeForce GTX 1660 SUPER 6GB GDDR6 Dual Fan Graphics Card
Product Type_
Graphics Card
FORM FACTOR_
ATX , E-ATX , MICRO-ATX
FANS_
2
EAN,GTIN,UPC_
751492632827
Brand_
PNY
COLOR_
BLACK
CHIPSET_
NVIDIA
PROCESSOR SERIES_
GTX
CAPACITY_
6 GB
BIT RATE_
192
MEMORY TYPE_
GDDR6
LIGHTING_
NONE
WARRANTY_
3 Years Warranty
