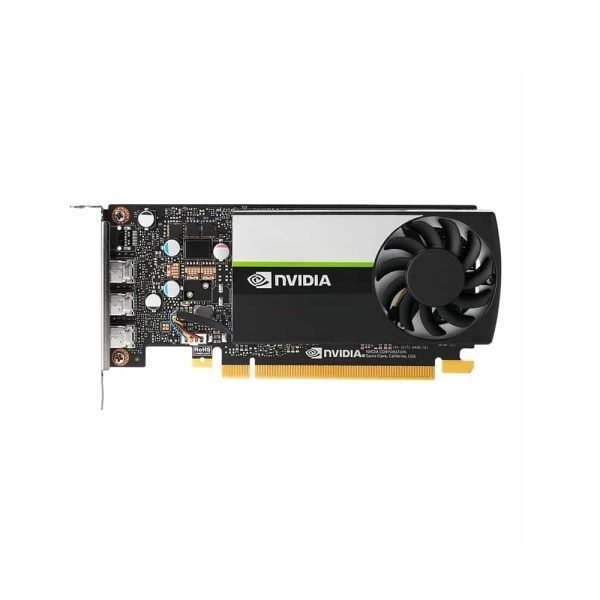

PNY Nvidia Quadro T400 2GB GDDR6 Graphics Card
2GB GDDR6 GPU Memory
64-bit Bus Memory
PCI-Express 3.0×16 Interface
Maximum 4 Display Support
80 GB/s Memory Bandwidth
GPU Interface – PCI Express 3.0×16
Memory – 2 GB GDDR6
CUDA Cores – 384
Memory Bandwidth – 80 GB/s
Memory Bus – 64-bit
OVERVIEW
NVIDIA GPUs power the world’s most advanced desktop workstations, providing the visual computing power millions of professionals need as part of their day-to-day workflow.
All stages of the professional workflow, from creating, editing, and viewing 2D and 3D models and videos to working with multiple applications across different displays, benefit from the power that only a discreet GPU solution can provide.
Being the part of NVIDIA RTX family of professional GPUs and the NVIDIA T400 delivers the functionality, features, reliability, and support that customers expect from NVIDIA Enterprise Solutions. The GPU has 2GB of GDDR6 memory, 384 CUDA cores, T400 pack power, and a small form factor performance support up to three 5K displays, and can easily handle a range of multi-app workflows.
TECHNICAL SPECIFICATIONS
Part Number_ VCNT400-PB
GPU Memory_ 2 GB GDDR6
CUDA Cores_ 384
Memory Interface_ 64-bit
Memory Bandwidth_ 80 GB/s
Form Factor_ Low-Profile Single Slot
Peak FP32 Performance_ 1.094 TFLOPS
System Interface_ PCI Express 3.0 x16
Maximum Power Consumption_ 30 W
Display Connectors_ 3x mDP
Thermal Solution_ Active Fansink
Max Digital Resolution_ 7680 x 4320 at 60 Hz
HDR Support_ Yes
Quad Buffered Stereo_ Yes
Max Displays_ 4x at 5K | 5120 x 2880 at 60 Hz
NVENC | NVDEC_ 2x H.264 and HVEC Encoders,1x Decode Engine
3D Graphics Architecture_ Scalable geometry architecture
Hardware tessellation engine
NVIDIA GigaThread engine with 3 async copy engines
Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
Up to 32K x 32K texture and render processing
Transparent multisampling and supersampling
16x angle independent anisotropic filtering
32-bit per-component floating point texture filtering and blending
64x full scene antialiasing (FSAA)
Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
Dedicated H.264 and HEVC Encoder
Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
NVIDIA GPU Boost (automatically improves GPU engine throughput to maximize application performance)
Nvidia Cuda Parallel Processing Architecture_ SMM architecture (NVIDIA Turing streaming multi-processor design that delivers greater processing and efficiency)
Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
96 KB of RAM (dedicated shared memory per SM)
Advanced Display Features_ Support for any combination of four connected displays
Three DisplayPort 1.4 outputs (supporting resolutions such as 3840 x 2160 at 120 Hz and 5120 x 2880 at 60 Hz)
HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K at 60 Hz 10b/12b HEVC Decode, 4K at 60 Hz 10b HEVC Encode)
HDCP 2.2 support over DisplayPort, DVI, and HDMI adapters
12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications, and connection)
Full OpenGL quad buffered stereo support
Underscan/overscan compensation and hardware scaling
NVIDIA RTX Desktop Manager
Support for Nvidia Mosaic
Display Port and HDMI Digital Audio_ Support for the following audio modes: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
Word sizes of 16-bit, 20-bit, and 24-bit
The mini-DisplayPort connectors are designed with a custom retention mechanism to firmly secure their connection with the display cable.
Supported Platforms_ Microsoft Windows 10 (64-bit), Red Hat Enterprise Linux 7.x, SUSE Linux Enterprise Desktop 15.x, OpenSuse 15, Fedora 31,Ubuntu 18.04, FreeBSD 11.x , Solaris 11
Package Contains_ NVIDIA T400 professional graphics card
Unattached low-profile (SFF) bracket
Attached full-height (ATX) bracket
NVIDIA Turing Quick Start Guide
NVIDIA Turing Support Guide
3x mDP to DisplayPort adapters
Specification: PNY Nvidia Quadro T400 2GB GDDR6 Graphics Card
Product Type_
Graphics Card
EAN, GTIN, UPC_
3536403384869
FORM FACTOR_
ATX , E-ATX , MICRO-ATX, MINI-ITX
FANS_
1
Brand_
PNY
COLOR_
BLACK
CHIPSET_
NVIDIA
PROCESSOR SERIES_
RTX
CAPACITY_
2 GB
BIT RATE_
64
MEMORY TYPE_
GDDR6
LIGHTING_
NONE
WARRANTY_
3 Years Warranty
