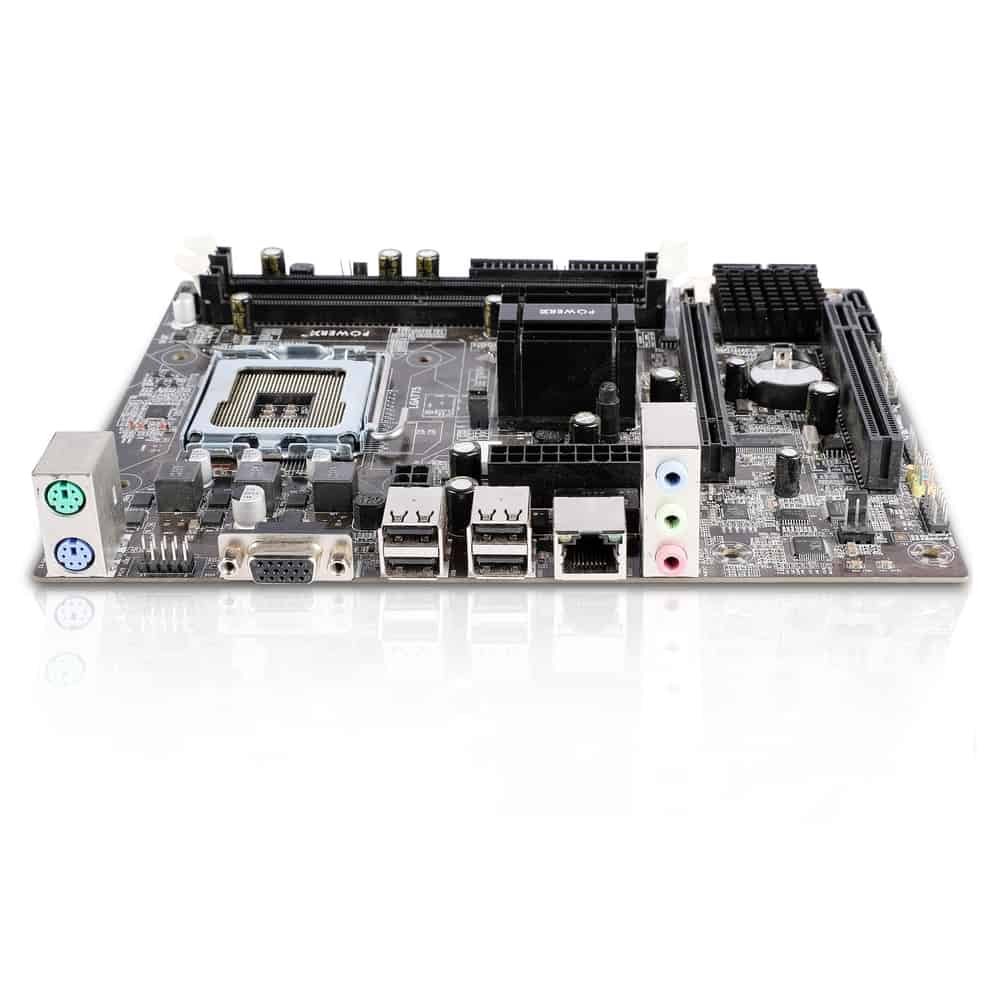

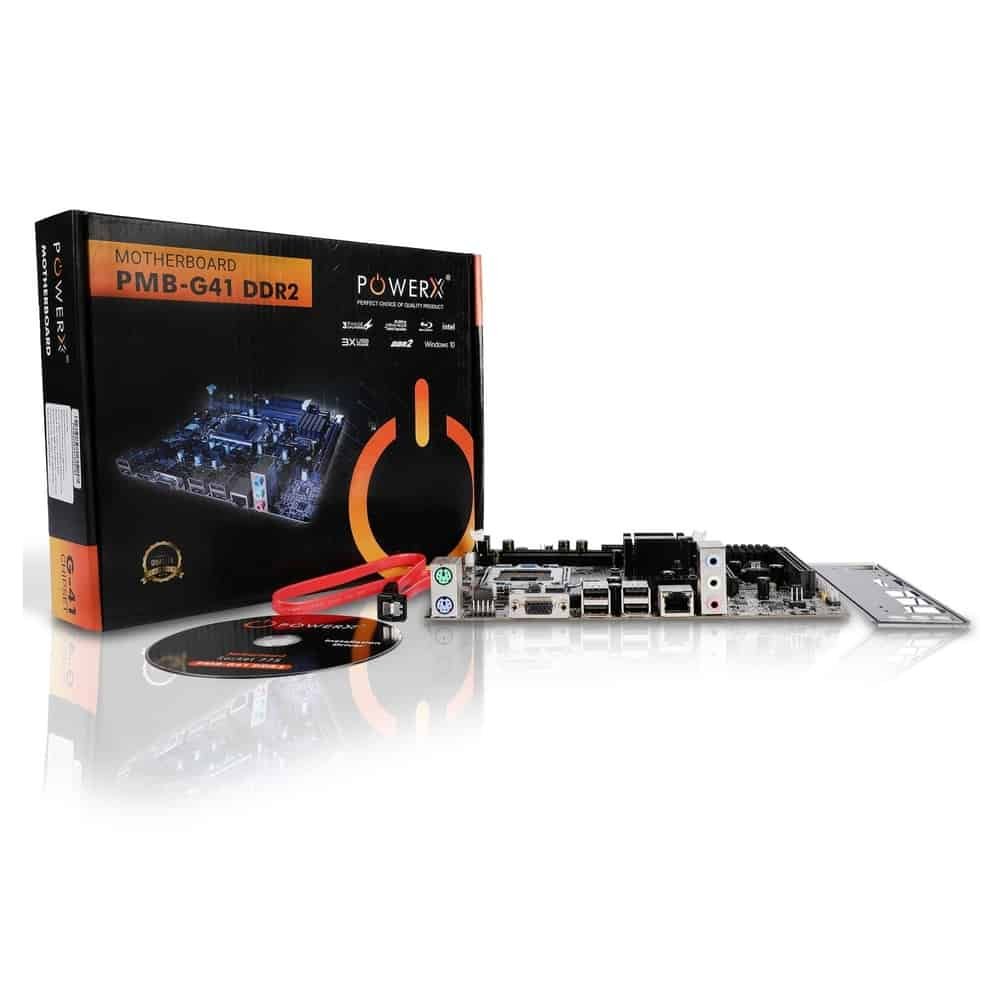

Power X PMB-G41 DDR2 Micro-ATX Motherboard
Suitable For Desktop
Intel G41 Chipset
Data Rate DDR2
Maximum RAM Capacity 4GB
Form Factor Micro-ATX
Form Factor – Micro-ATX
Socket – Supports LGA775 CPU
Chipset – Intel G41 + 82801GB
Memory Support – DDR2 up to 4GB
Expansion Slot – 1 x PCI Express x 16 Slot, 1 x PCI Slot
OVERVIEW
The LGA775 socket on the motherboard supports Intel CPUs from 1.8 to 3.8 GHz, with front-side bus frequencies ranging from 533 MHz to 1333 MHz. The motherboard is value for money as the G41 chipset is capable of handling HD video playback and embedded computing applications requiring 3D graphics.
TECHNICAL SPECIFICATIONS
Model_Power X Motherboard PMB-G41-DDR2
CPU_Socket 775 Intel Core 2 Quad/ Core 2 Duo / Pentium Series / Celeron Series
Chipset_North Bridge – Intel G41; South Bridge – Intel 82801GB
Memory_2 DDR II dual-channel RAM Slots
Memory upto 4GB
Supports DDR II 800MHz / 667MHz Memory, 2 x DIMM Slots
BIOS_AMI Bios
I/O Interface_1 x PS/2 Keyboard port and 1 x PS/2 Mouse Port
1 x VGA, 4 x USB 2.0
1 x RJ45 port, 1 x 3-in-1 Audio Port (Line-in / out / MIC In)
Onboard Interface_1 x Front Panel Connector, 1 x Front Audio Connector, 1 x J-COM Connector
2 x F-USB Connectors, can support upto 4 x USB 2.0
4 x Sata Ports, 1 x IDE Slot, 1 x 4 pin CPU Fan Connector, 1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V power connector, 1 x clear CMOS header
Integrated LAN_Supports RTL8106E, 10/100 Mbps Ethernet LAN
Expansion Slot_1 x PCI Express x 16 slots, 1 PCI slot
Form Factor_Micro-ATX
Dimension_15.3 x 10.3 x 2.54 cm
Weight_800 gm (approx)
Specification: Power X PMB-G41 DDR2 Micro-ATX Motherboard
Product Type
Motherboards
CPU PLATFORM
INTEL
CPU SOCKET
LGA775
FORM FACTOR
MICRO-ATX
Brand
Power X
CHIPSET
Intel G41
MAXIMUM MEMORY
4 GB
IDEAL FOR GAMING
NO
WARRANTY
2 Years Warranty
