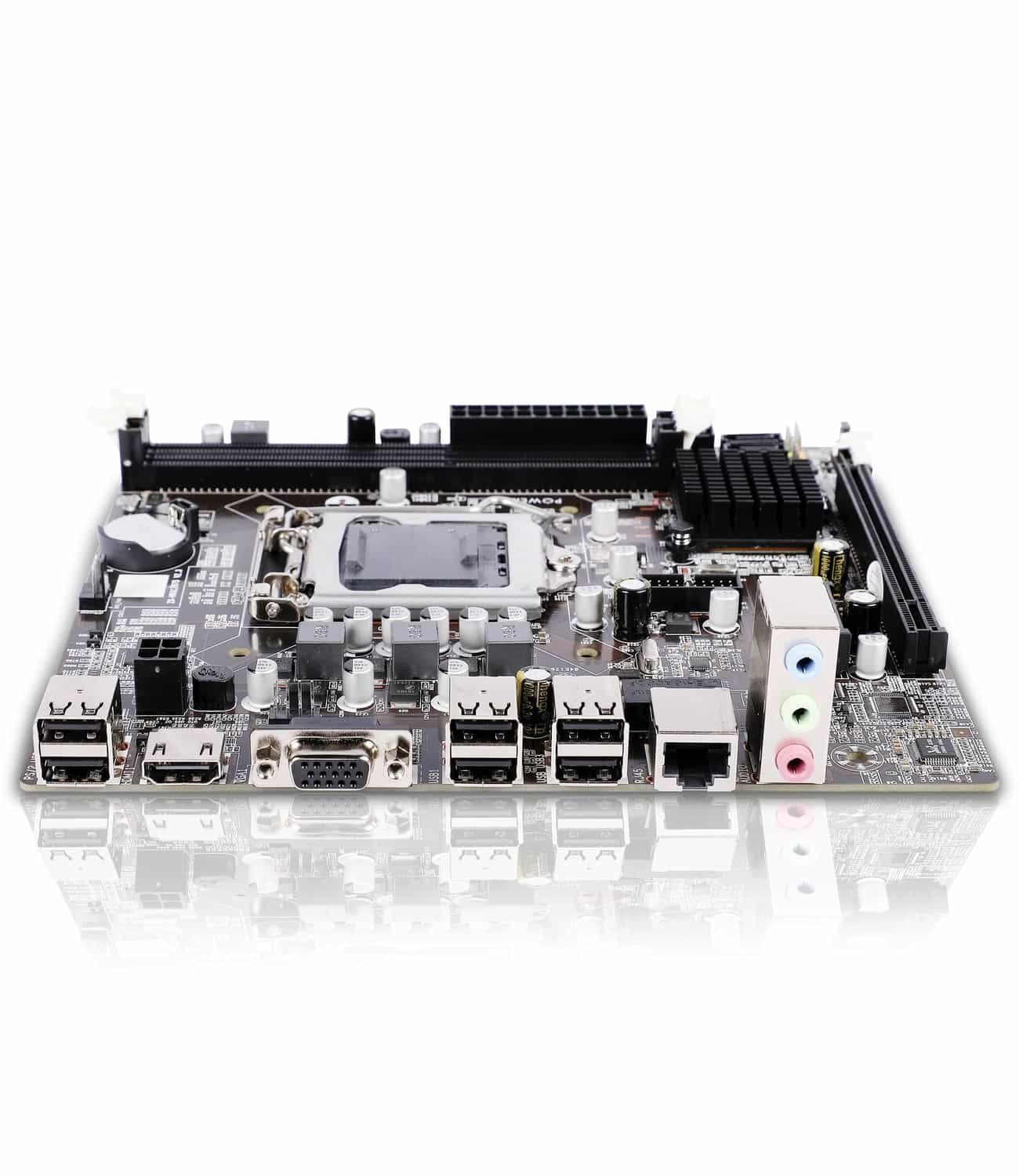

Power X PMB-H61-DDR3 m-ATX Motherboard | LGA1155 Socket Support

In stock

LGA 1155 Socket, Intel H61 Chipset
Maximum capacity support 16 GB
DDR3 RAM memory technology
Core i5 3340 Processor
Micro-ATX form factor

Compare
SKU: IT-25102022-385 Category:

Motherboard Chipset – Intel H61, 1066MHz/1333/1600

CPU socket – LGA1155 Socket i3/i5/i7 series CPU

Form Factor – Micro-ATX

Compatible Processors – i3 2nd, i5 3rd

Maximum Memory Support – 16 GB (Supports Dual-channel DDR3 RAM)

OVERVIEW
The PowerX PMB-H61-DDR3 m-ATX Motherboard has an LGA1155 socket, which supports the Intel Core i3, i5, and i7 processors. It is able to support up to 16GB of DDR3 1600MHz memory. The socket also supports the Intel H61 chipset. It has a dual-channel DDR3 1066MHz/1333/1600 MHz Memory BIOS EFI. With a 6-channel HD Audio codec Onboard provides a front audio interface, it provides a front stereo mic interface.

TECHNICAL SPECIFICATIONS

Chipset– Intel H61, 1066MHz/1333/1600
USB– 1 x USB Connectors, can support 2 x USB 2.0
1 x HDMI, 1 x VGA, 6 x USB 2.0, compatible with USB 1.1
I/O Interface– 1 x HDMI, 1 x VGA
1 x RJ45
6 x USB 2.0, compatible with USB 1.1
Onboard Interface– 1 x 24-pin ATX power connection
1 x 4-pin ATX 12 V power connection
1 x USB Connectors, can support 2 x USB 2.0
1 x F Audio Connector
1 x F Panel Connector
1 x Speaker Connector
2 x FAN connectors
4 x Serial ATA connection port
Internal I/O Headers– 1 x SATA 1.5 Gb/s Headers
1 x SATA 3 Gb/s Headers
1 x SATA 6 Gb/s Headers
2 x IEEE 1394a Headers
1 x USB 2.0 Headers
1 x USB 3.0 Headers
1 x ATX Power Connectors (4 Pin EATX), 1 (24 Pin ATX Power Connectors)
1 x Fan Headers (Processor Fan Headers), 1 (System Fan Headers)
1 x Front Panel Headers
1 x Other Connectors
Back Panel Ports– 1 x USB 2.0 Ports, Controller
1 x USB 3.0 Ports, Controller
1 x eSATA Ports, Controller
1 x HDMI Ports
1 x IEEE 1394a Ports
1 x DVI Ports
1 x VGA/D Sub Ports
1 x Audio I/O Channels
1 x Optical S/PDIF Ports and S/PDIF Out ports
1 x RJ-45 Ethernet Jacks
1 x PS/2
Expansions Slots– 1 x PCI Slots
1 x PCIe x1 Slots, Generation
1 x PCIe x2 Slots, Generation
1 x PCIe x4 Slots, Generation
1 x PCIe x8 Slots, Generation
1 x PCIe x16 Slots, Generation
1 x Mini PCIe Slots
Memory–
No. of memory slots– 1 slot
Memory Frequency– Supports dual-channel DDR3 1066MHz/1333/1600 MHz memory
Memory configuration– 16 GB DDR3 Supports LGA1155 Socket i3/i5/i7 series CPU DDR III SDRAM Slots
ECC support– 1
Buffered memory– Yes
Audio–
Audio Codec– 6-channel HD audio
Audio Channels– 6
Audio Features– A 6-channel HD audio codec onboard provides a front audio interface, provides front stereo mic interface
Audio Port– 1 x 3 in 1 Audio Port (line-in, line out, mic-in)
Connectivity–
Ethernet Controller– With 10/100 Mbps LAN Onboard
Ethernet Card– With 10/100 Mbps LAN Onboard
Ethernet Features– With 10/100 Mbps LAN Onboard
Wireless and Bluetooth– 1 and 1
Storage Interface–
SATA 1.5 Gb/s– 2
SATA 3 Gb/s– 2
SATA 6 Gb/s– 2,2
RAID Controller– 0
RAID Configurations– 0
PATA Ultra DMA– 0,0
Graphics–
Integrated Graphics card– No
External Graphics Card Support– Yes
Side Port Memory– No
General Features–
Overclocking– No
Hardware Monitoring– EFI BIOS
Support CDs– 1
Bundled Software– No
OS Support– Windows 7, Windows 8, Windows 10
BIOS– EFI BIOS
Advanced Technologies– No
Advanced Features– EFI BIOS, with 6-channel HD Audio codec Onboard provides front audio interface; provides front stereo mic interface, with 10/100 Mbps LAN Onboard
Product Dimension– 27 x 21.4 x 5.8 cm
Item weight– 570 gms
Specification: Power X PMB-H61-DDR3 m-ATX Motherboard | LGA1155 Socket Support
CPU PLATFORM–
INTEL

CPU SOCKET–
LGA1155

FORM FACTOR–
MICRO-ATX

Product Type–
Motherboards

Brand–
Power X

CHIPSET–
Intel H61

MAXIMUM MEMORY–
16 GB

IDEAL FOR GAMING–
NO

WARRANTY–
3 Years Warranty
