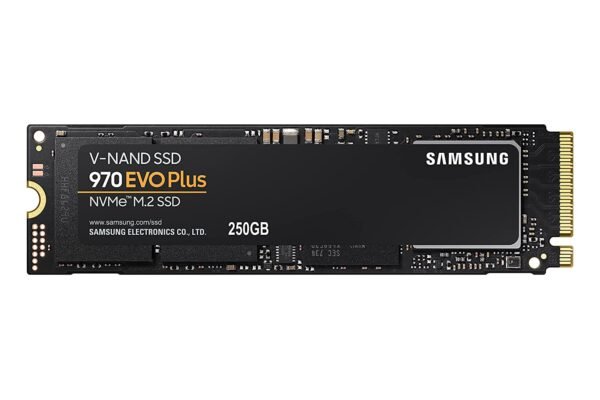

Samsung 970 EVO Plus 250GB M.2 PCIe NVMe Internal SSD MZ-V7S250BW

Always Evolving SSD
The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing. Comes in capacity 250GB, with reliability 150 TBW.

Level up Performance
The 970 EVO Plus reaches sequential read/write speeds up to 3,500/2,300 MB/s, up to 53% faster than the 970 EVO. Powered by the latest V-NAND technology—which brings greater NAND performance and higher power efficiency—along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost speed.

Design Flexibility
The next advancement in NVMe SSDs. The 970 EVO Plus fits 250GB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung’s innovative technology empowers you with the capacity to do more and accomplish more.

Exceptional Endurance
The new standard in sustainable performance. Get up to 150 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung’s reputation for quality.

Unparalleled Reliability
Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.

Recommended reading:Samsung 980 500GB M.2 NVMe Gen3 Internal SSD MZ-V8V500BW

Samsung Magician
Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.

Specification :

Model Samsung SSD 970 Evo Plus
Series 970 EVO
Capacity 250GB
Application Client PCs
Interface PCIe Gen 3.0 x 4, NVMe 1.3
Dimension (WxHxD) 80.15 x 22.15 x 2.38 (mm)
Sequential Read Up to 3,500 MB/s
Sequential Write Up to 2,300 MB/s
NAND Flash Samsung V-NAND 3-bit MLC
TRIM Support Supported
S.M.A.R.T Support Supported
Cache Memory Samsung 512MB Low Power DDR4 SDRAM
Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support Not supported
GC (Garbage Collection) Auto Garbage Collection Algorithm
Device Sleep Mode Support Yes
Voltage 3.3 V ± 5 % Allowable voltage
Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
Operating Temperature 0 – 70 ℃ Operating Temperature
NVMe Yes
Gaming SSDs Yes
Form Factor M.2 (2280)
Warranty 5 Years
