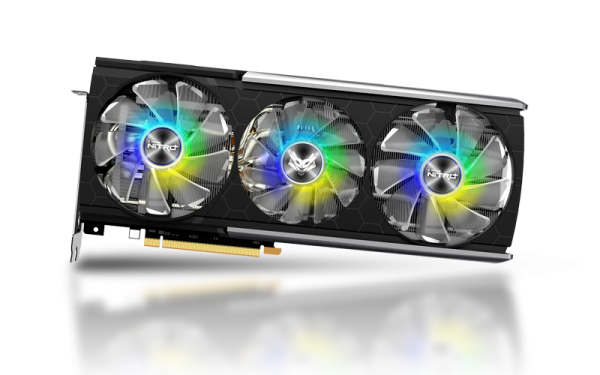

Sapphire Nitro+ Radeon RX 5700 XT 8GB Graphics Card
Brand
Sapphire
CHIPSET
AMD
BIT RATE
256
CAPACITY
8 GB
FANS
3
MEMORY TYPE
GDDR6
PROCESSOR SERIES
RX
WARRANTY
3 Years Warranty
Product Type
Graphics Card
FORM FACTOR
ATX , E-ATX
Sapphire Nitro+ Radeon RX 5700 XT 8GB, GDDR6 Dual HDMI / Dual DP OC (UEFI) Special Edition Graphics Card (11293-05-40G)
PRODUCT DESCRIPTION
The SAPPHIRE NITRO+ RX 5700 XT Special Edition graphics card delivers a maximized 4K gaming experience for the PC Gamer alongside the incredible beauty of three ARGB fans addressable to deliver 16.8 million-colour RGB illumination. Packed with SAPPHIRE’s renowned high-end quality components, including our award–winning Tri-X cooling solution, Black Diamond Chokes and Shroud enhancements to strengthen the PCB; the NITRO + RX 5700 XT Special Edition delivers the stunning performance boost of approximately 6% with an overclocked memory of 14.4Gbps, and robust stability every gamer demands. Features including Intelligent Fan Control and advanced Tri-X Fan Cooling create supreme heat dissipation, minimum noise and maximum reliability. AMP up the aesthetic design of your rig with elegant styling and complete ARGB Lighting which can be customized with SAPPHIRE’s TriXX software. Boost the performance of your favorite games to get a winning advantage over your friends with the new TriXX Boost feature. Get NITRO Charged with the SAPPHIRE NITRO+ RX 5700 XT Special Edition!
FEATURES
Explore all the incredible features that come with the SAPPHIRE NITRO+ RX 5700 XT Special Edition Graphics Card.
COOLTECH
Our superior cooling technology to keep your temperatures low at a high framerate
– Intelligent Fan Control
– Precision Fan Control
– Robust VRM Cooling
– Robust Memory Cooling
– Tri-X Cooling Technology
DNA
Our core parts that elevate the life of our products through quality, robustness & reliability
– Backplate (Tough Metal Backplate)
– Two-Ball Bearing
– Fan Quick Connect
– Fuse Protection
– Black Diamond Choke
– Dual BIOS
PLUS
All of the extra features that make our SAPPHIRE Boards so special and unique
– TriXX Supported
– TriXX Boost
– Software BIOS Switch
– Max Boost
– Power Design
– Fan Glow ARGB support
– NITRO Glow
– ARGB Audio Visualization
– Fan Check
– Free Flow
– VR Friendly
TECHNICAL SPECIFICATION
GPU
– Radeonâ„¢ RX 5700 Graphics
– 2nd Gen 7nm GPU
– RDNA Architecture
Engine Clock
– Boost Clock: Up to 2035MHz
– Game Clock: Up to 1965 MHz
– Base Clock: 1840 MHz
– Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
2560
Memory Size/Bus
8GB/256 bit GDDR6
Memory Clock
14.4 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI™: 4096×2160@60Hz
DisplayPort1.4: 5120×2880@60Hz
Interface
PCI-Express 4.0
Output
2x HDMI
2x DisplayPort
BIOS Support
Dual UEFI
API
Vulkan®
OpenGL® 4.6
OpenCL 2.0
DirectX® 12
Shader Model 6.4
Game Index
Extreme 1440P
Sapphire Features
TriXX Supported
TriXX Boost
Software BIOS Switch
Max Boost
Power Design
Optional Fan Glow ARGB support
NITRO Glow
ARGB Audio Visualization
Fan Check
Free Flow
VR Friendly
Intelligent Fan Control
Precision fan control
Robust VRM Cooling
Robust Memory Cooling
Tri-X Cooling Technology
Backplate (Tough Metal Backplate)
Two-Ball Bearing
Fan Quick Connect
Fuse Protection
Black Diamond Choke
Dual BIOS
AMD Features
RDNA Architecture
2nd Gen 7nm GPU
GDDR6 Memory
Power Efficiency
PCI Express 4.0 Support
Video Streaming up to 8K
Display Port 1.4 (HBR3) / DSC
Radeonâ„¢ Software
Radeonâ„¢ Boost
Radeonâ„¢ Image Sharpening
Radeonâ„¢ Anti-Lag
AMD FidelityFx
Async Compute
Radeonâ„¢ Rays Audio + True Audio Next
Radeonâ„¢ FreeSyncâ„¢ 2 HDR
Radeonâ„¢ VR Ready Premium
Cooling
Tri-X Cooling
Triple Fan
Two-Ball Bearing
Form Factor
2.5 slot, ATX
Dimension: 306x 135 x 49 (mm)
Power Consumption
285W
OS
Linux®, Windows® 10, Windows® 7
64bit operating system required
System Requirement
Recommended 650 Watt Power Supply (Minimum 600 Watt Power Supply).
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
WARRANTY
2 YEARS
