Sapphire PULSE AMD Radeon RX 6750 XT 12GB GDDR6 Graphic Card 11318-03-20G

SAPPHIRE PULSE AMD Radeon RX 6750 XT
The SAPPHIRE PULSE AMD Radeon RX 6750 XT Graphics Card runs on the powerful Dual-X Cooling Technology coupled with Intelligent Fan Control to keep temperatures low and fan noise low. The refined PCB design delivers stable, reliable, and steady performance, which efficiently lowers PCB temperature and component signal noise.

High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

Metal Backplate with Thermal Pad
The high quality aluminum backplate is not just for styling. It also protects the components on the backside of the PCB and helps dissipate the heat from the PCB with a high performance thermal pad in between.

Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

Recommended reading:Sapphire NITRO+ AMD Radeon RX 6650 XT 8GB GDDR6 Graphic Card 11319-01-20G

Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

Specification :

GPU AMD Radeon RX 6750 XT Graphics Card
7nm GPU
AMD RDNA 2 Architecture
Engine Clock Boost Clock: Up to 2618 MHz
Game Clock: Up to 2512 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors 2560
Infinity Cache 96MB
Ray Accelerators 40
Memory Size/Bus 12GB GDDR6
Memory Clock 18 Gbps Effective
Displays Maximum 4 Displays
Resolution HDMI : 7680×4320
DisplayPort1.4: 7680×4320
Interface PCI-Express 4.0

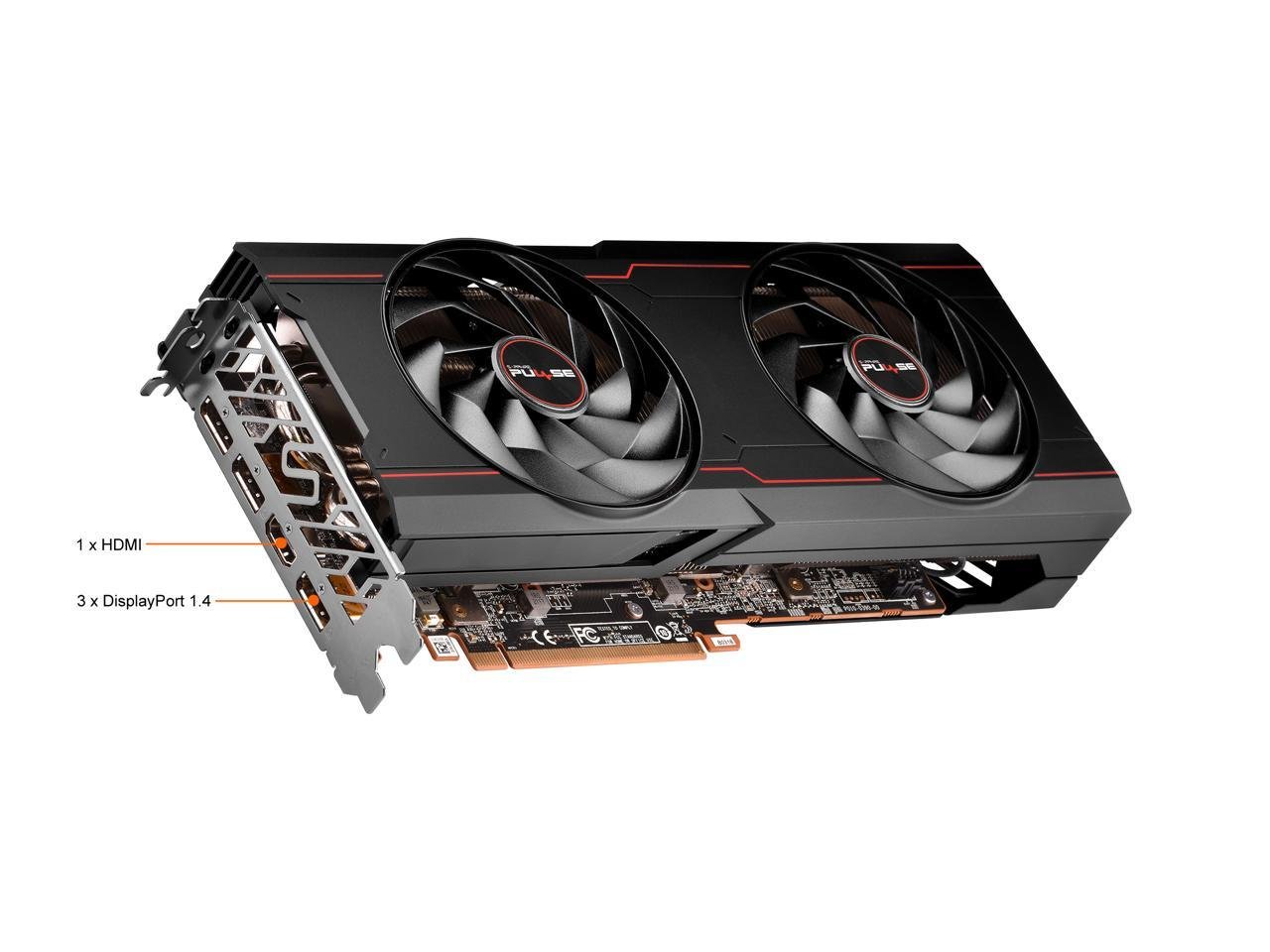

Output 1x HDMI
3x DisplayPort
BIOS Support UEFI
Game Index 1440P
Sapphire Features Premium Digital Power Design
Fuse Protection
High TG Copper PCB
Optimized Composite Heatpipe
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Metal Backplate with Thermal Pad
Two-Ball Bearing Fans
TriXX Supported
TriXX Boost
AMD Features AMD RDNA 2 Gaming Architecture
DirectX 12 Ultimate
Hardware Raytracing
GDDR6 Memory
Smart Access Memory
Infinity Cache
7nm GPU
PCI Express 4.0 Support
AMD FreeSync Technology
DisplayPort 1.4 with DSC
HDMI
Video Streaming up to 8K
Radeon VR Ready Premium
AMD FidelityFX
AMD FidelityFX Super Resolution (FSR)
AMD Radeon Super Resolution
Radeon Image Sharpening
Radeon Anti-Lag
Radeon Software
Game Driver Optimizations
Cooling Dual Fans
Form Factor 2.7 slot, ATX

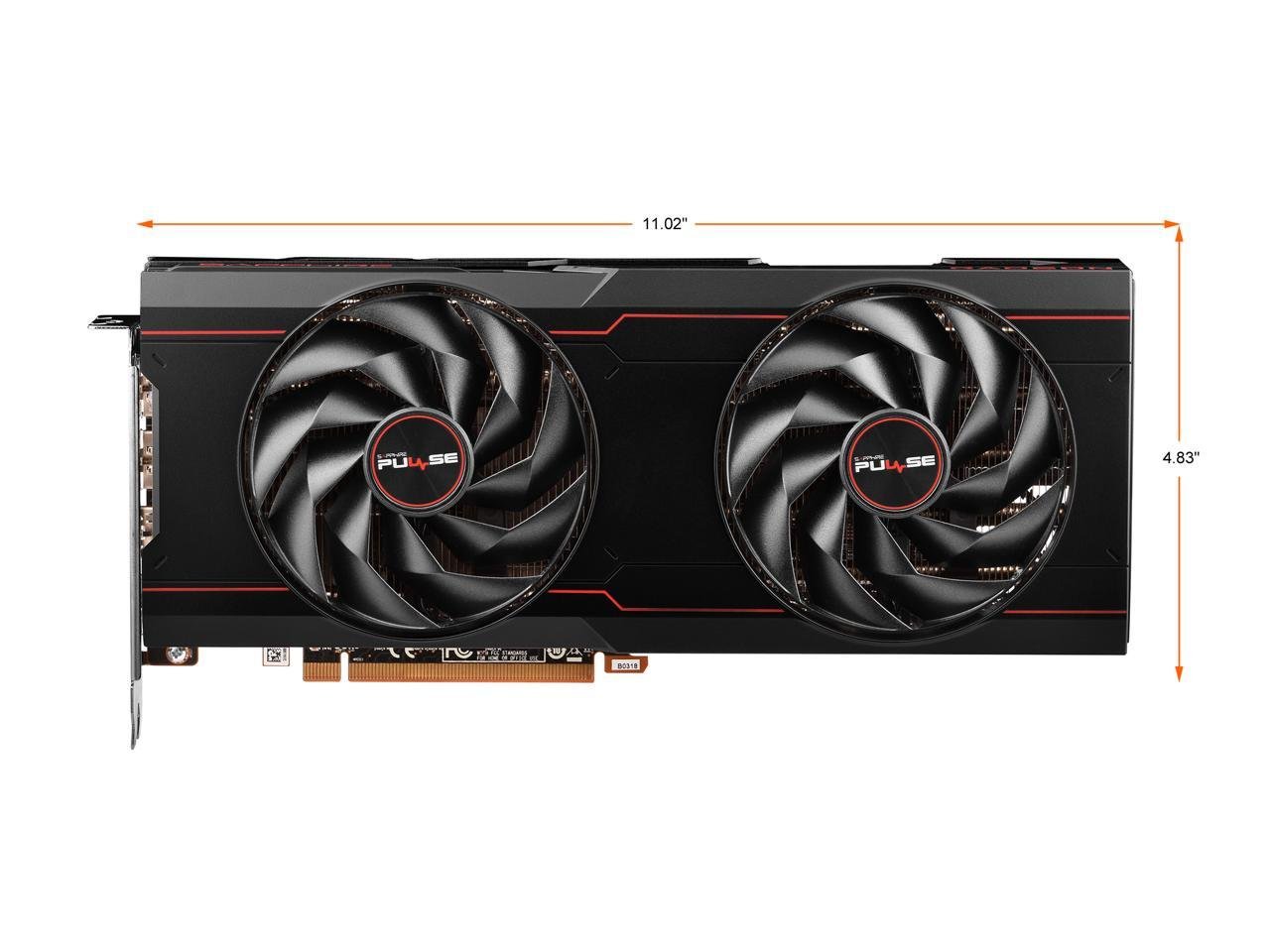

Dimension: 280(L)X 122.75(W)X 50.47(H)mm
Power Consumption 250W Total Board Power
OS Linux, Windows 7*, Windows 10, and Windows 8.1. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement Minimum 650 Watt Power Supply
1 x 8-pin + 1 x 6-pin Power Connector.
PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
