Thermaltake AH T600 Full Tower Gaming Cabinet – Snow White

Thermaltake AH T600 Full Tower E-ATX Gaming Cabinet with Both Side 5mm Tempered Glass Panel – Snow White
FEATURES :
The AH T600 Snow full-tower chassis from the AH Series is forged with a sturdy, air-force-styled architecture with two large 5mm tempered glass panels on the left and right sides, and three 3mm tempered glass windows on the front. I/O ports are located at the top-front panel with a futuristically designed power button. It is a newly designed open frame case, compared to Thermaltake Core P Series, which not only ensures outstanding ventilation but also enables users to demonstrate their DIY handwork and showcase their internal components. The AH T600 Snow supports high-end expansion that can hold up to four 120mm fans at the front and can fit our Pacific DP 100-D5 Plus RGB liquid cooling distribution plate. The AH T600 Snow Full Tower Chassis is one-of-a-kind that all users will notice, love, and desire.

TT Premium :
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed TT Premium with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion for DIY, Modding, and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations, and Boundless Creativity to provide a high-performance PC product for every enthusiast.

Tt LCS Certified :
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiast’s standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Helicopter Inspired Design :

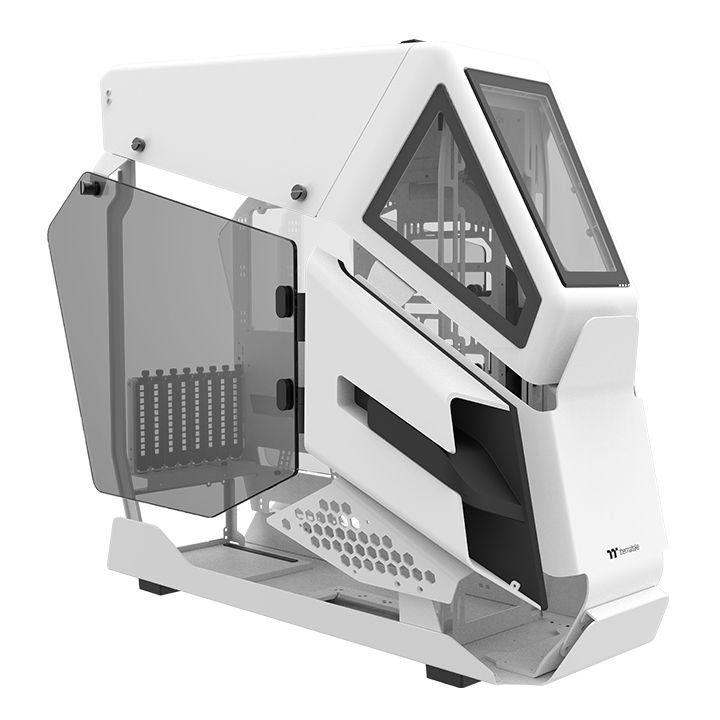

The AH T600 Snow is a helicopter-inspired full tower case constructed with solid steel all around and side vents on each end. Two beautifully designed 5mm tempered glass panels on each side and three 3mm small tempered glass windows at the front not only help you showcase interior components but also highlight the helicopter design concept.

Tempered Glass Window :
The chassis comes with two 5mm tempered glass panels, thicker and more scratch resistant when compared to standard acrylic. Swing doors on the left and right sides allow users to easily access the internal components as well as the ability to remove the doors entirely for complete access to the internals. On top of this, the enlarged window design enables you to display and admire all your components in their full RGB glory.

Recommended reading:Antec NX200 RGB ATX Gaming Cabinet – Black

Sophisticated Space Design :
The sophisticated and special interior space design of the AH T600 Snow provides ample capacity for PC components placement and cable management.

Vertical GPU Mount and Patented Rotational PCI-E 8 Slot :
Specially designed with dual GPU placement options, the AH T600 Snow has support for both vertical and horizontal graphics card layouts. With dual PCI-E slot designs (and an optional PCI-e riser cable), the included riser GPU support bracket will not only prevent the graphics card from sagging but also help reduce the overall weight on the motherboard.

Thermaltake TT Premium PCI-E 3.0 Extender (Optional) Supports a wide range of GPU solutions. This is an extreme high-speed cable with a highly-routable design, EMI shielding with conducting polymer is crafted for meeting the most demanding system. Available in 300mm, 600mm, and 1000mm in length.

Outstanding Airflow :
Thanks to the dedicated open-frame design of the AH T600 Snow, the airflow within the case moves smoothly, ensuring the interior temperature stays low at all times.

Opportunities For High-End Expansion :

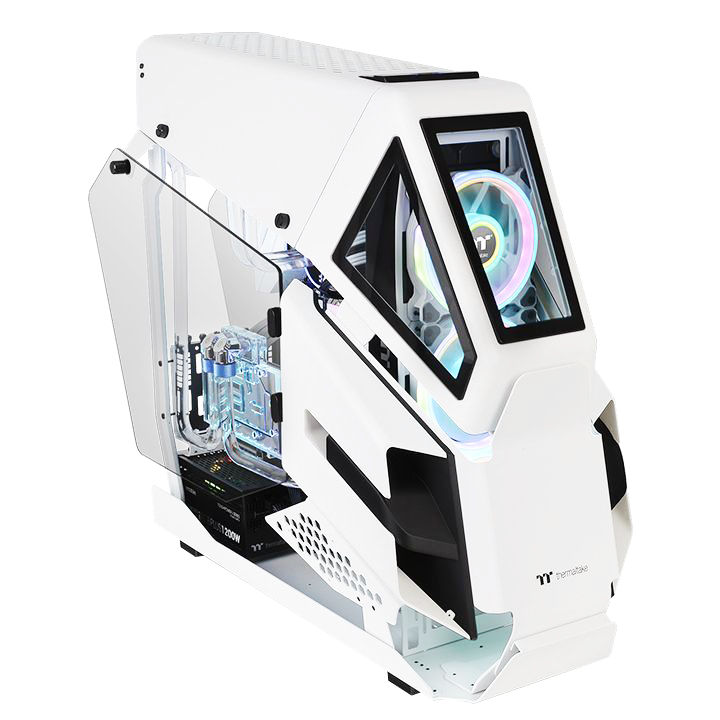

The AH T600 Snow has excellent expandability. It can support a CPU cooler with a maximum height of 195mm, two-way VGA placement of up to 440mm in length (without water pump), a power supply with a length of up to 200mm. The AH T600 Snow is optimized for advanced AIO/DIY liquid cooling components and supports all kinds of AIO liquid cooling solutions. It can hold up to 480mm custom liquid cooling radiators and up to 360mm AIO liquid coolers. Moreover, the AH T600 Snow Full Tower Chassis can also house up to four 120mm fans at the front, three 120mm fans on the top and at the bottom.

Recommended reading:Corsair 570X RGB Gaming Mid Tower Cabinet – Mirror Black

DMD – Dismantlable Modular Design :
Strip your case down to the bones and install elements when and as you need them with our modular design. The AH T600 Snow features modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.

TECHNICAL SPECIFICATIONS :
P/N: CA-1Q4-00M6WN-00
SERIES: AH Series
MODEL: AH T600 Snow
CASE TYPE: Full Tower
SIDE PANEL: 5 mm Tempered Glass x 2
COLOR: Snow White
MATERIAL: SPCC
DRIVE BAYS:
ACCESSIBLE – 2 x 3.5 inch or 3 x 2.5 inch
HIDDEN – NA
EXPANSION SLOTS: 8
MOTHERBOARDS: 6.7 inch x 6.7 inch (Mini ITX), 9.6 inch x 9.6 inch (Micro ATX), 12 inch x 9.6 inch (ATX), 12 inch x 10.5 inch (E-ATX)
I/O PORT: 1 x USB 3.1 (Gen 2) Type C, USB 3.0 x 2, USB 2.0 x 1, HD Audio x 1
PSU: Standard PS2 PSU (optional)
FAN SUPPORT:
Front –

4 x 120 mm or 3 x 120 mm or 2 x 120 mm or 1 x 120 mm
3 x 140 mm or 2 x 140 mm or 1 x 140 mm
Top –

3 x 120 mm or 2 x 120 mm or 1 x 120 mm
2 x 140 mm or 1 x 140 mm
Right –

3 x 120 mm or 2 x 120 mm or 1 x 120 mm
2 x 140 mm or 1 x 140 mm
RADIATOR SUPPORT:
Front –

Recommended reading:Gamdias Athena M1 Elite Mid Tower Gaming Cabinet – Black | 3 x 120mm ARGB Fans Pre-Installed | Tempered Glass Side Panel

1 x 480 mm or 1 x 360 mm or 1 x 240 mm or 1 x 120 mm
1 x 420 mm or 1 x 280 mm or 1 x 140 mm
Top –

1 x 360 mm or 1 x 240 mm or 1 x 120 mm
1 x 280 mm or 1 x 140 mm
Right –

1 x 360 mm or 1 x 240 mm or 1 x 120 mm
1 x 280 mm or 1 x 140 mm
CLEARANCE:

CPU Cooler Height Limitation: 195 mm
VGA Length Limitation –
300 mm (With Water Pump)
440 mm (Without Water Pump)
PSU Length Limitation: 200 mm
DIMENSION (H X W X D): 628.3 x 337 x 763 mm (27.74 x 13.3 x 30 inch)
NET WEIGHT 20.64 kg / 45.5 lb
