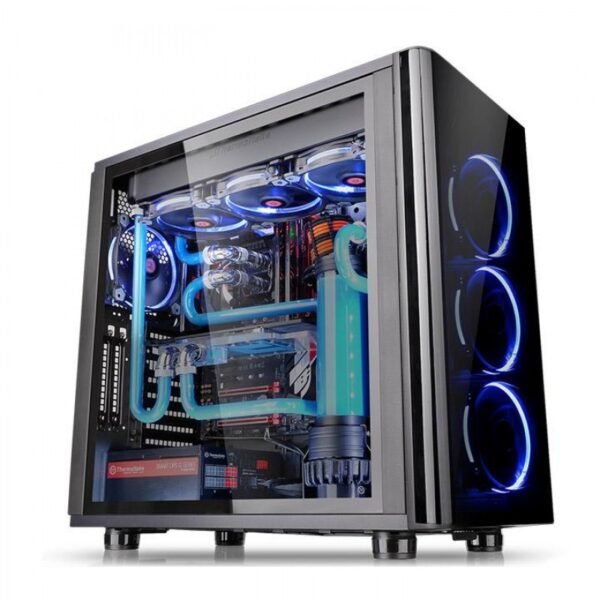

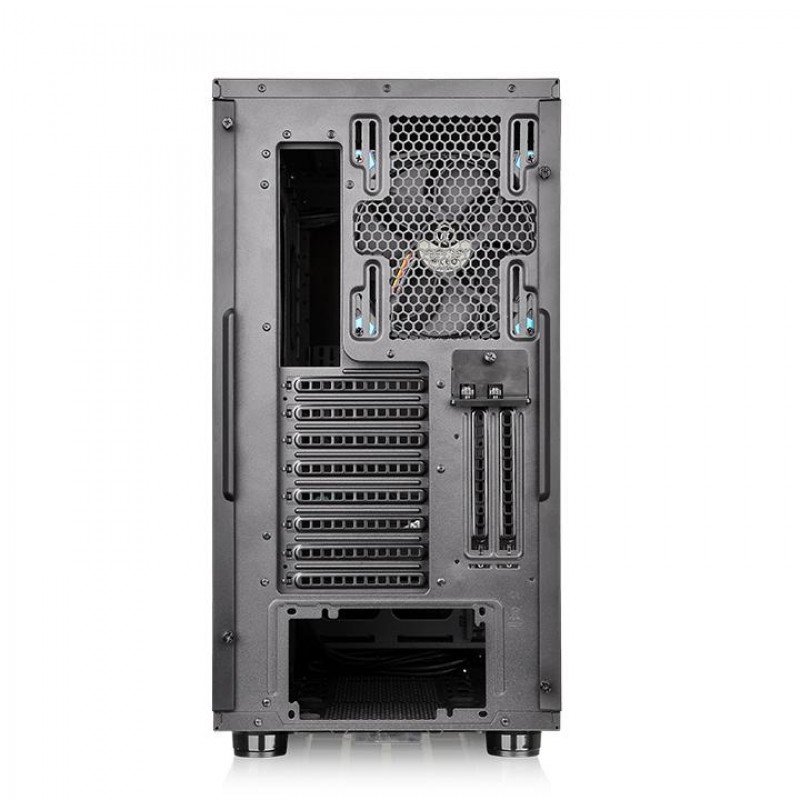

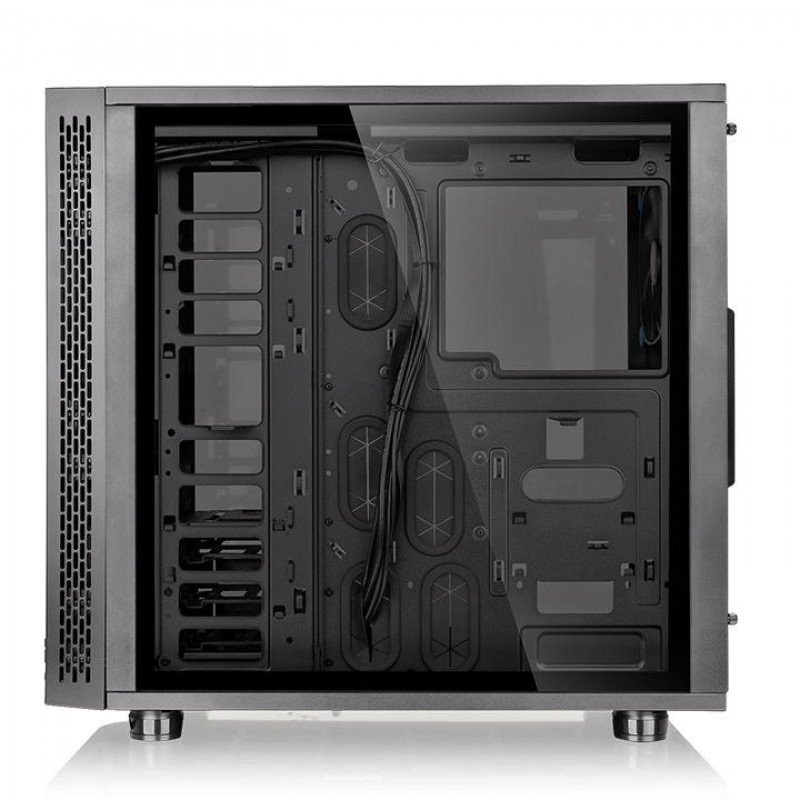

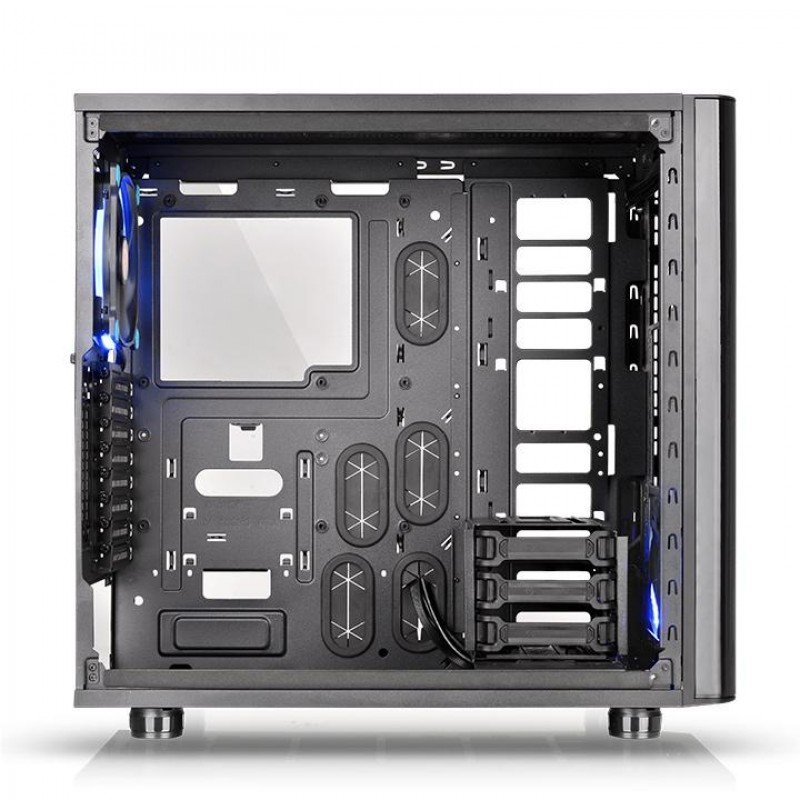

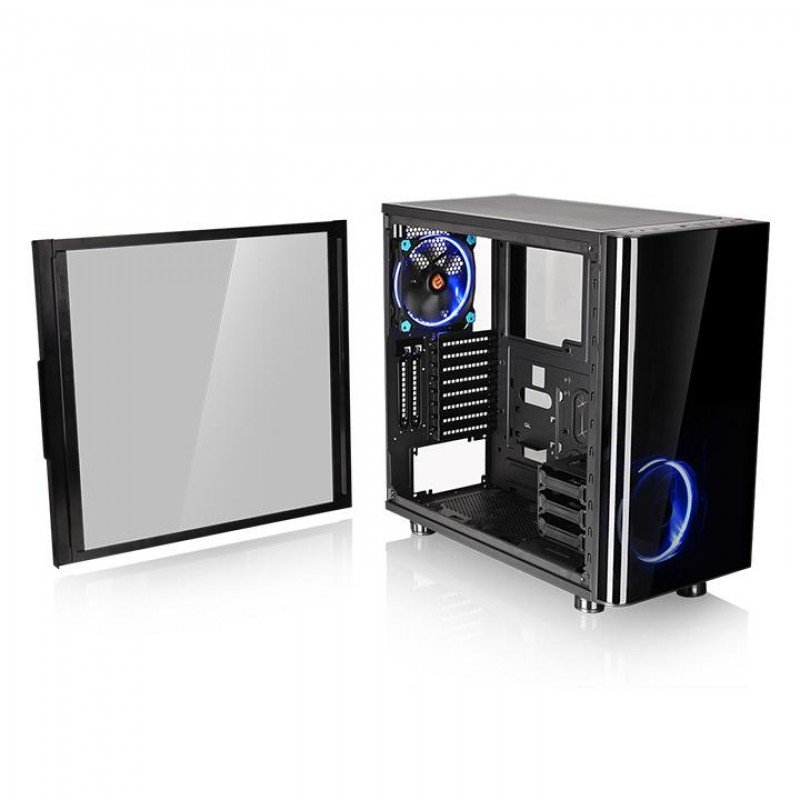

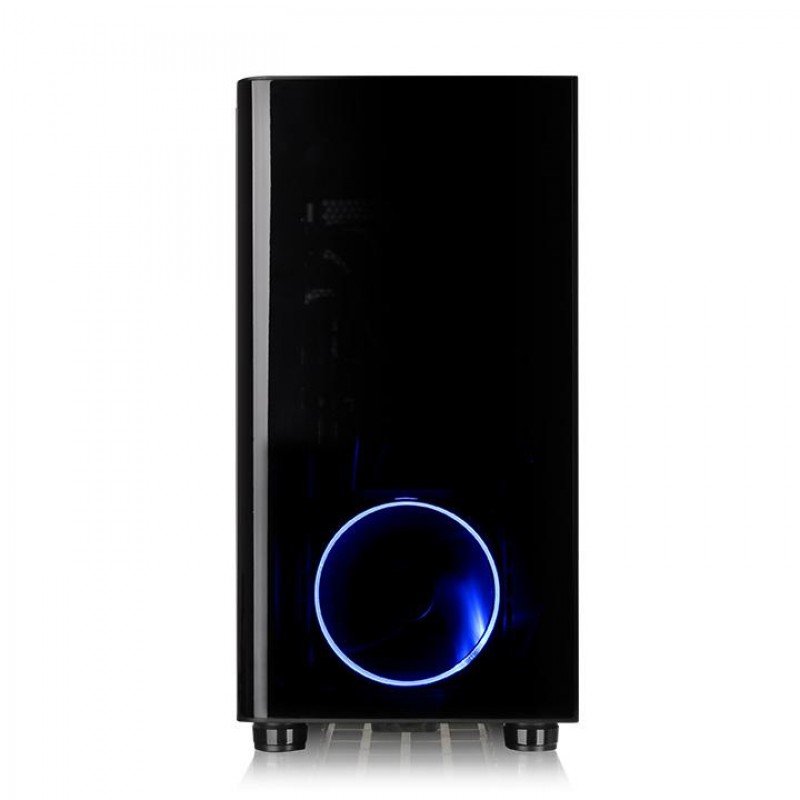

Thermaltake View 31 TG (Black)

P/N
CA-1H8-00M1WN-02
SERIES
View
MODEL
View 31 TG ARGB
CASE TYPE
Mid Tower
DIMENSION (H X W X D)
497 x 250 x 511 mm
(19.5 x 9.8 x 20.1 inch)
SIDE PANEL
4mm Tempered Glass x 2 (Left & Right)
COLOR
Exterior & Interior : Black
MATERIAL
SPCC
COOLING SYSTEM
Front (intake) :
140 x 140 x 25 mm ARGB fan (1000rpm, 22.8 dBA) x 2
Rear (exhaust) :
140 x 140 x 25 mm ARGB fan (1000rpm, 22.8 dBA)
DRIVE BAYS
-ACCESSIBLE
-HIDDEN

–
3 x 3.5’’ or 2.5’’ (HDD Cage)
EXPANSION SLOTS
8 + 2
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O PORT
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, RGB Button x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm , 2 x 140mm , 1 x 200mm
Top:
3 x 120mm , 3 x 140mm , 2 x 200mm
Rear:
1 x 120mm , 1 x 140mm
Bottom:
2 x 120mm , 2 x 140mm
RADIATOR SUPPORT
Front:
1 x 360mm , 1 x 280mm
Top:
1 x 360mm , 1 x 280mm
Rear:
1 x 120mm , 1 x 140mm
Bottom:
1 x 120mm , 1 x 140mm
CLEARANCE
CPU cooler height limitation: 180mm
VGA length limitation: 278mm(with HDD rack)
420mm(without HDD rack)
PSU length limitation: 180mm (With One Bottom Fan)
220mm (Without Bottom Fan)
